Name: MC Series
Brand: MINTECH
Availability: InStock

CO2 Laser

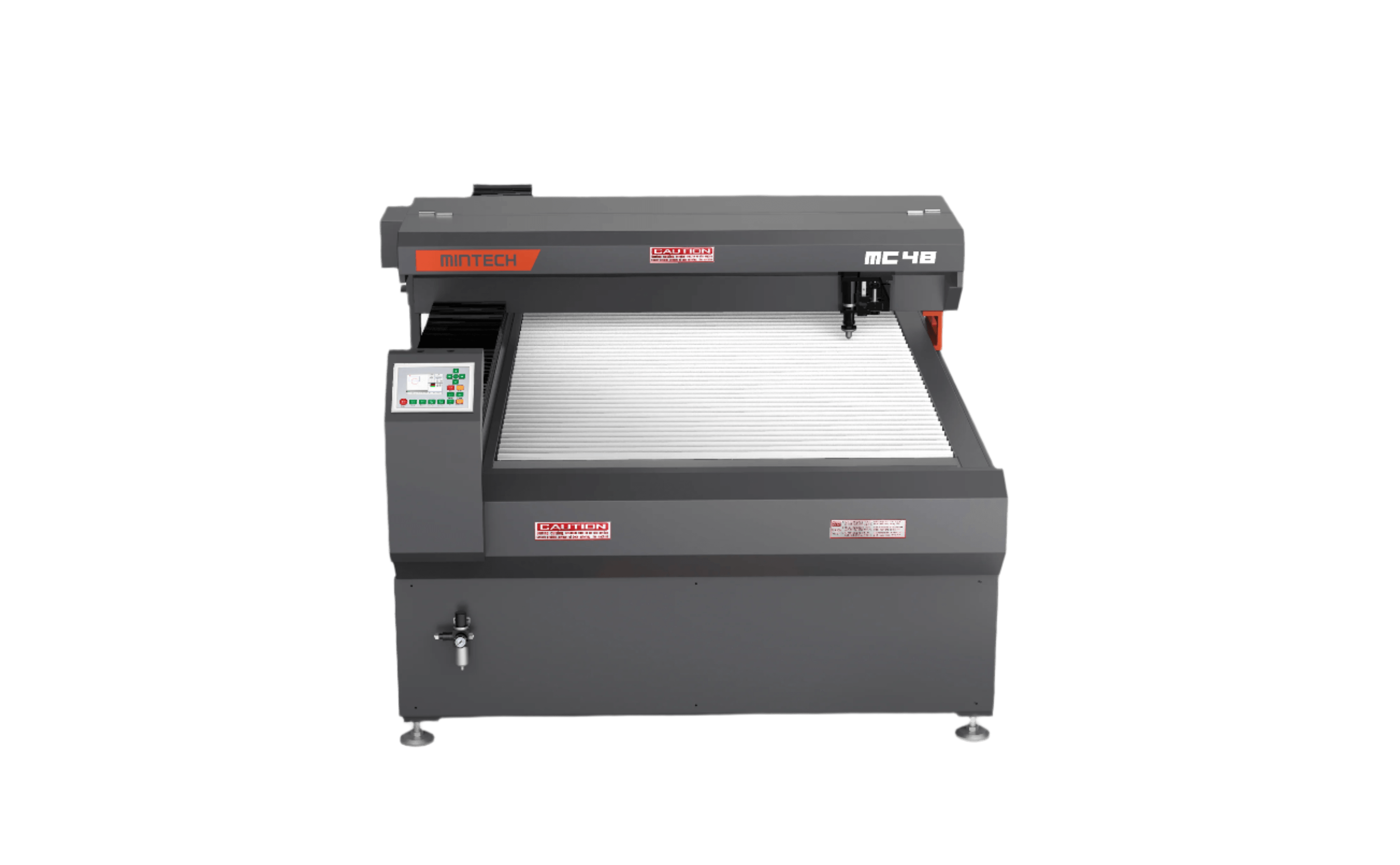

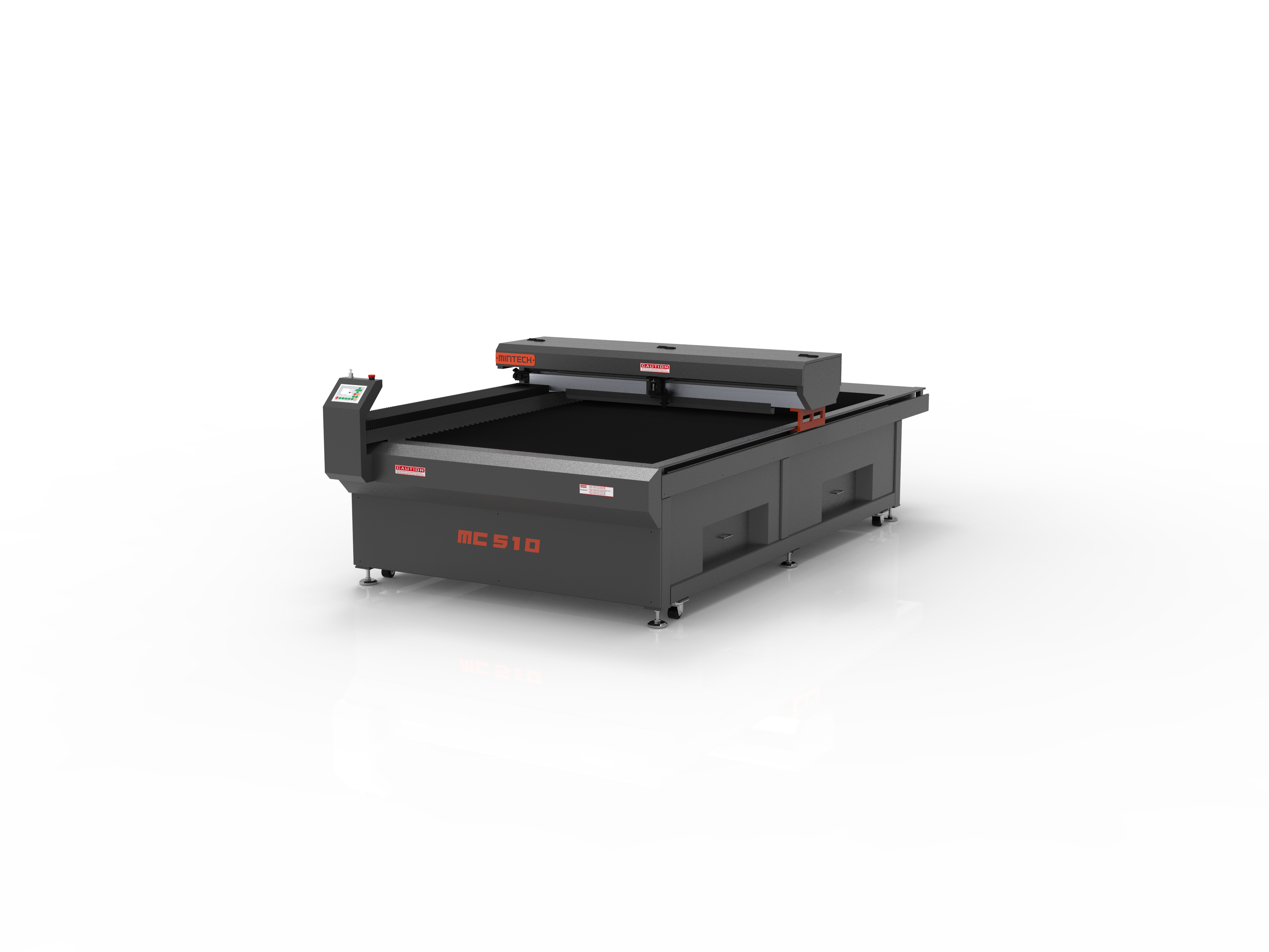

MC Series

Designed for high-speed performance and large-scale projects, the MC Series is built for durability, efficiency, and handling a wide range of materials. Ideal for industrial applications requiring precision and reliability.

MC Series CO2 Lasers - Tech Specs
Model	MC43	MC48	MC510
Working Area	48×36 Inches (1220×910mm)	48×96 Inches (1220×2440mm)	60×120 Inches (1525×3050mm)
Table Load	≤220 lbs (≤100 kg)	≤440 lbs (≤200 kg)	≤660 lbs (≤300 kg)
Machine Dimensions	69×65×51 Inches (1750×1650×1300mm)	83×150×51 Inches (2100×3800×1300mm)	96×161×51 Inches (2450×4100×1300mm)
Weight	1144 lbs (520 kg)	1904 lbs (820 kg)	2200 lbs (1100 kg)
Power Supply	220V, 60Hz, Single Phase, 2.2KW, 12.5A	220V, 60Hz, Single Phase, 4.4KW, 25A	220V, 60Hz, Single Phase, 4.4KW, 25A
Communication	USB, RJ45, U-disk
Environment	Humidity: 40%-60%, Temperature: 10°C-30°C (50°F-86°F)
Laser Class	CLASS IV
Air Requirements	Compressed air: 0.6-1.0 MPa (87-145 psi), 60-150 L/min (2-5 CFM)
Transmission	Ball Screw & Linear Guide Rail
Drive System	Servo Motor System
Focus System	Electric Focus
Optical Path	Enclosed Constant Path Design
Software Compatibility	LightBurn Software
CCD Camera	Optional Auto-Contour Cutting
Alignment	Red Point Indicator
Max Speed	250 mm/s
Cutting Precision	±0.05mm/300mm
Laser Power	150W, 300W, 450W Options
Laser Lifespan	≥ 1 year
Cooling	Water Cooling
Cutting Capacities	Solid Wood: 18mm, MDF: 12mm, Acrylic: 40mm

CO₂ Laser Machine
Material	Cutting	Engraving
Metal
Aluminum
Aluminum, anodized
Chromium
Stainless steel
Metal, painted		✓
Plastic
Acrylonitrile butadiene styrene (ABS)	✓	✓
Acrylic/PMMA, i.e. Plexiglas®	✓	✓
Polyamide (PA)	✓	✓
Polyethylene (PE)	✓	✓
Polyurethane (PUR)	✓	✓
Miscellaneous
Wood	✓	✓
Acrylic (mirror)	✓	✓
Leather	✓	✓
Fabric	✓	✓
Cardboard	✓	✓

Visualization

Video

Content

Structure

🔹 Heavy-Duty Construction – Provides a solid foundation for high-speed operation.
🔹 Precision Engineering – Reduces vibrations for accurate cutting results.
🔹 Corrosion-Resistant & Long-Lasting – Designed for durability in industrial environments.

RD Controller

✅LightBurn ✅RDWORKs

🔹 Standalone USB & Ethernet Connectivity
🔹 Multi-Axis Control (X, Y, Z, U) for Automation
🔹 Fast & Accurate Motion Processing
🔹 Supports RDWorks & LightBurn Software
🔹 Compatible with Multiple File Formats

Focal Lens

🔹 Enhances airflow for stable and consistent cutting.

🔹 Comes with two sets of focal lens for both thick and thin cutting application.

🔹 Enhanced air cooling for durability.

Ball Screw Transmission (All Axes)

🔹 High Precision – Provides accurate positioning for clean, detailed cuts.
🔹 Smooth & Stable Motion – Reduces vibration for consistent performance.
🔹 Durable & Long-Lasting – Made from high-quality materials for extended use.
🔹 Optimized for MC Series Lasers – Ensures seamless compatibility and superior results.

Servo Motors

🔹 High-Speed & High-Torque – Ensures fast, powerful, and precise movement.
🔹 Superior Positioning Accuracy – Reduces errors for cleaner, more detailed cuts.
🔹 Stable & Low Noise Operation – Minimizes vibration for consistent performance.

Knife Table

🔹 Optimized Airflow Design – Reduces heat buildup and prevents material scorching.
🔹 Strong & Durable Structure – Supports heavy materials while ensuring stability.
🔹 Minimal Contact Points – Reduces back reflection for cleaner cuts.
