Name: SR Series
Brand: MINTECH
Availability: InStock

CNC Router

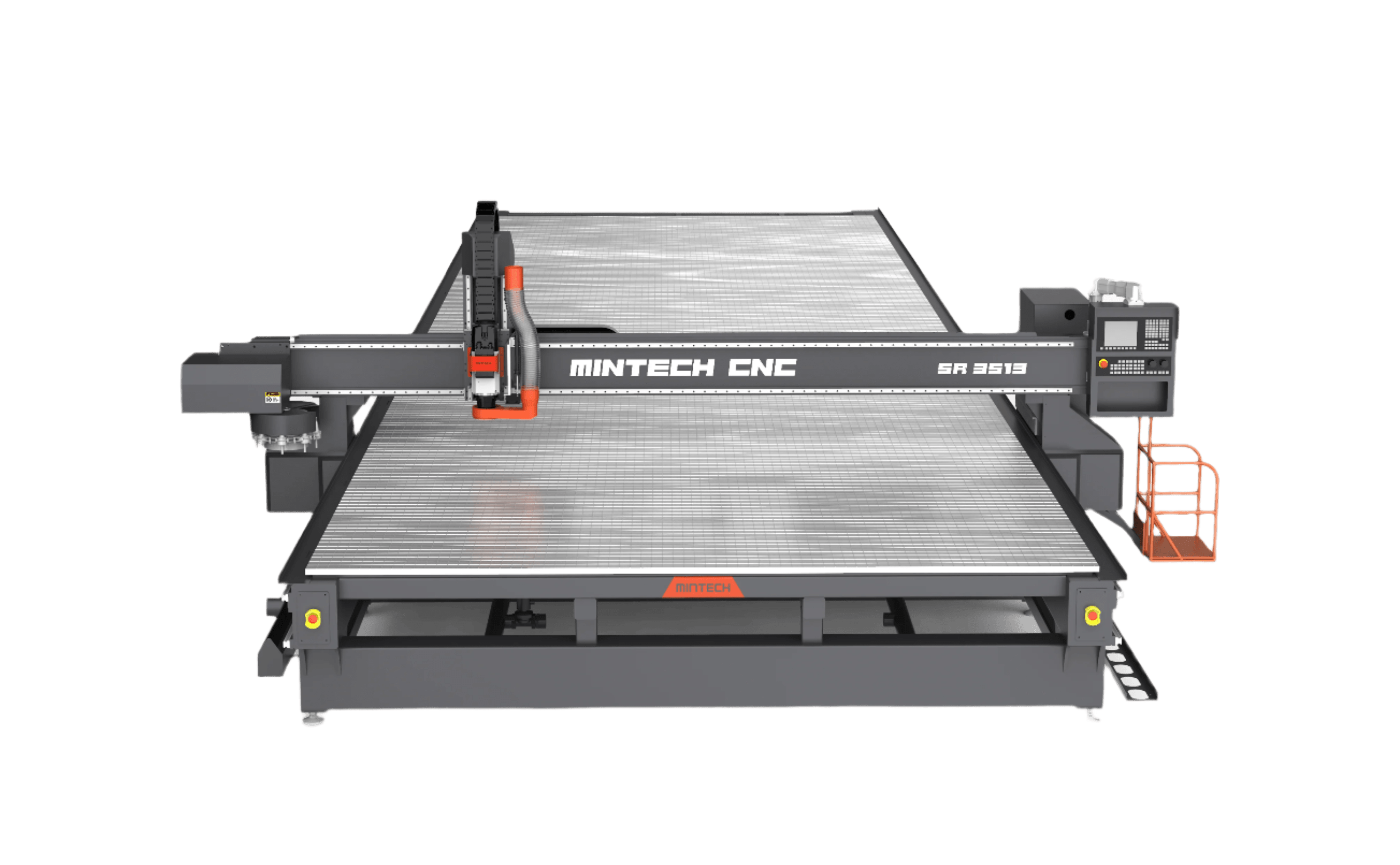

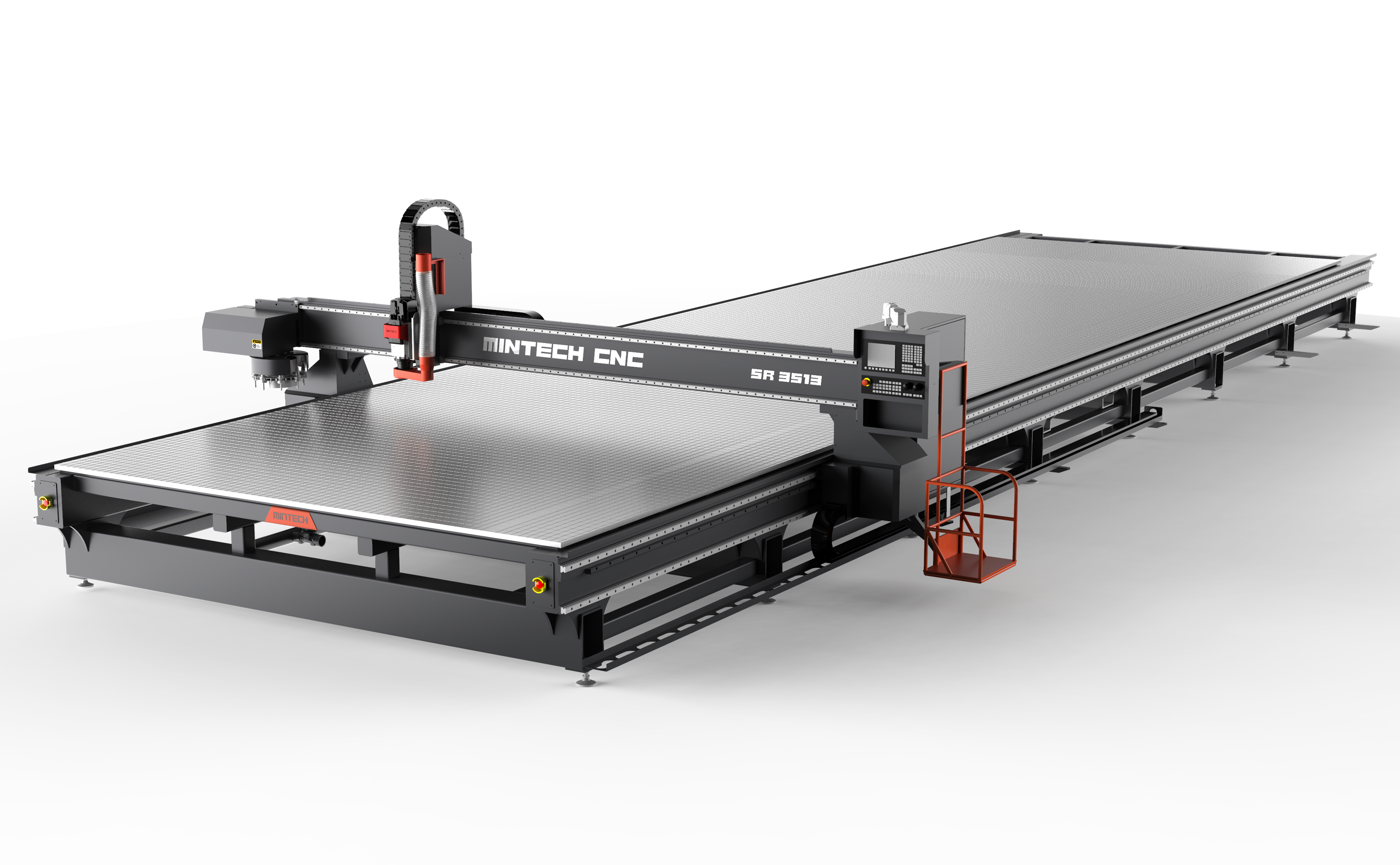

SR Series

SR is a heavy-duty machine engineered for machining large, thick, and heavy materials with exceptional precision. Featuring a robust welded steel frame, heat-treated for long-term stability, and a high-performance servo-driven system with helical rack-and-pinion transmission, the SR Series ensures consistent accuracy in demanding industrial applications. Its flexible customization options, multi-function modular expansion, and superior material processing capabilities make it ideal for industries like power generation, shipbuilding, aerospace, automotive, and exhibition engineering. Whether working with metals, composites, or oversized acrylic panels, the SR Series delivers unmatched performance and durability.

SR Series CNC Routers - Tech Specs
Category	Heavy-Duty CNC Router for Custom Industrial Applications
Customization	Fully customizable for extra-large working areas and specialized functionalities
Z-Axis Travel	Up to 25 inches (650 mm)
Material Thickness	Up to 13 inches (350 mm)
Applications	Shipbuilding, Aerospace, Automotive, Power Systems, Aquariums, Large-Scale Industrial Parts
Materials	Plastics, Thick Acrylic Panels, High-Strength Aluminum & Copper Plates, Composite Materials, Hard Wood
Worktable Surface	Phenolic composite vacuum table with precision-milled grid and T-slot aluminum
Control System	Supports DXF, AI, CDR, NC, G-code formats \| Compatible with Weihong, Syntec, Siemens
CAM Software Compatibility	VCarve, Aspire, Alphacam, Engview, and other industry-standard software
Drive System	Servo-driven motors \| Gantry movement \| XY: Precision helical rack-and-pinion \| Z: Ball screw
Speed	Max travel speed: 131 ft/min (40 m/min)
Precision	Positioning Accuracy: ±0.004 inches (±0.05 mm/300 mm) \| Repeatability: ±0.002 inches (±0.05 mm)
Spindle	12 HP (9 kW) Air-Cooled, Up to 30,000 RPM \| Options: Hiteco or HSD spindles
Tool Holder	ISO 30 with ER32 collets
Tool Changing System	Standard: 5-position linear tool rack \| Optional: 8-position rotary tool changer \| Custom options available
Power Requirements	208-240V, 3-phase, 60 Hz, 63A
Compressed Air	0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min)
Vacuum Requirements	117.7-176.6 CFM (200-300 m³/h), Vacuum pressure ≥85 mbar (8500 Pa)

Visualization

Video

Content

Stand Alone Box Controller

Supported File Formats:

G-code (.gcode, .nc): Machine-ready files for CNC operations.

DXF (.dxf): Standard for 2D designs and CAD drawings.

SVG (.svg), EPS (.eps), AI (.ai): Vector formats for detailed designs.

STEP/IGES (.step, .iges): 3D CAD formats for advanced machining.

CAM Software Compatibility:
Compatible with leading CAM software, including:

EnRoute

VCarve

Vectric Aspire

Fusion 360

Optional Spindle

ROTARY Automatic Tool Change

Linear Guide Rails

Servo Motors

Ball Screws Transmission

Vacuum Table

High-strength vacuum table with multiple zones for efficient material hold-down during cutting.
Suitable for various materials like wood, acrylic, aluminum, and composites.

Dust Collection System

Integrated dust collection port for a clean working environment and improved machine lifespan.

Vacuum Zones

4 Zones Control for 4x8 ft
6 Zones Control for 5x10 ft
Customizable

Desktop/Laptop Only

Servo Motors

Vacuum Table

Dust Collection System
