Name: TR Series
Brand: MINTECH
Availability: InStock

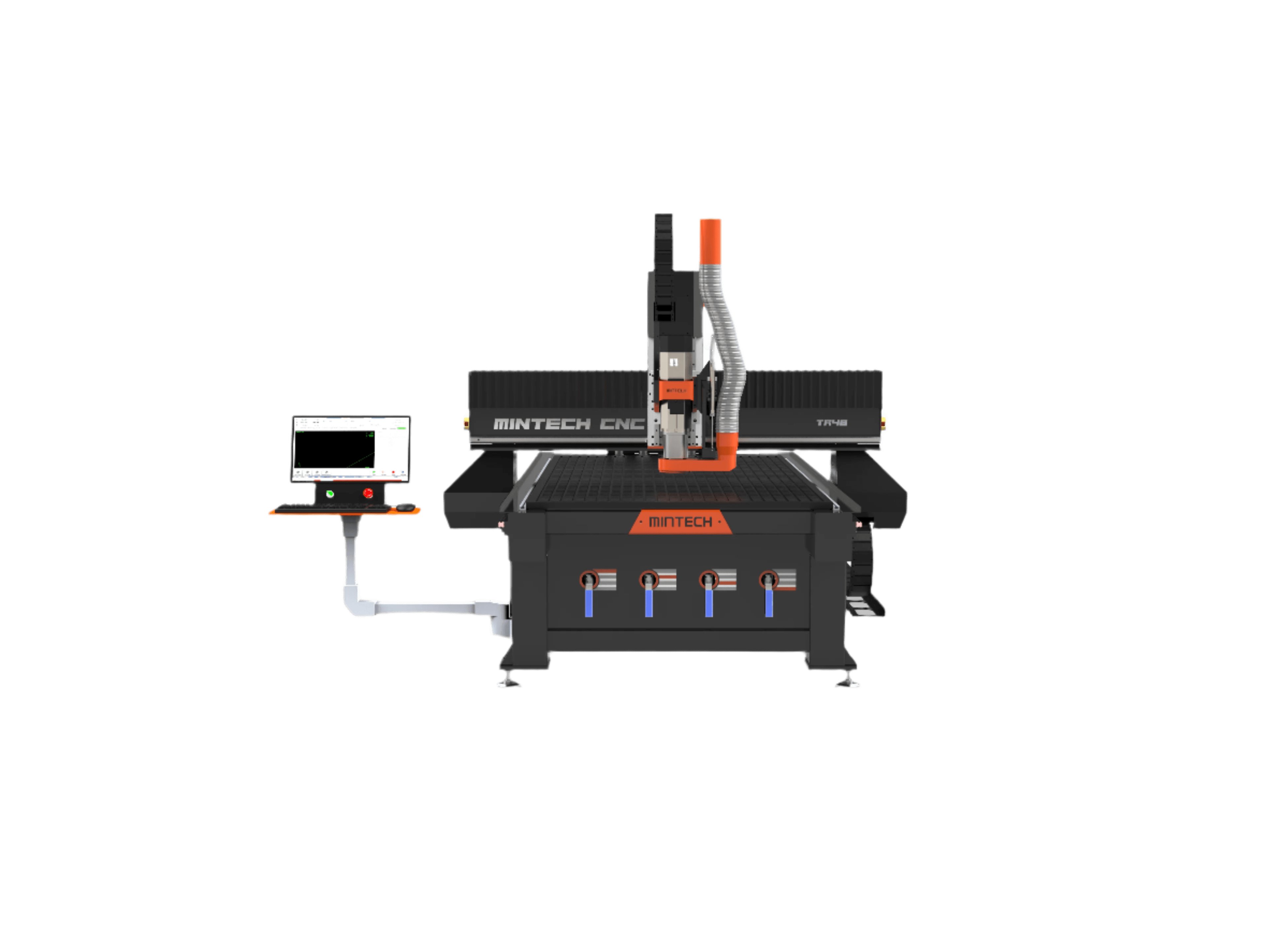

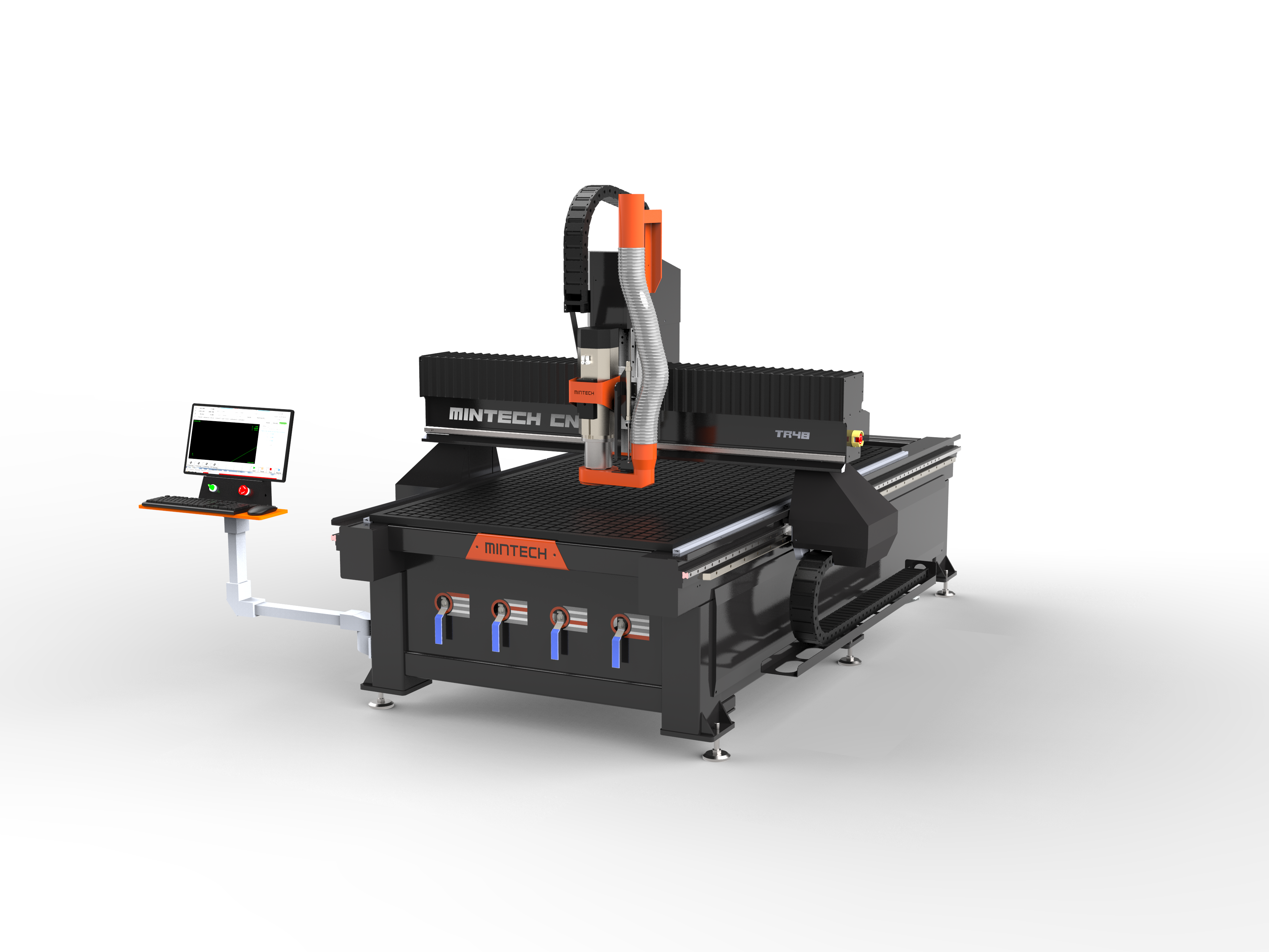

CNC Router

TR Series

Engineered for versatility and durability, offering precise machining on a wide range of materials including wood, plastics, acrylic, and aluminum. Equipped with powerful spindle motors, robust rack-and-pinion drive systems, and advanced control options, the TR Series ensures accurate, high-speed performance. Its rigid structure, customizable table sizes, and user-friendly operation make it ideal for signage, cabinetry, and industrial production tasks.

TR Series CNC Routers - Tech Specs
Category	TR48	TR510	TR720
Working Area	4’×8’ (1250×2500mm)	5’×10’ (1530×3060mm)	7’×20’ (2000×6000mm)
Dimensions (L×W×H)	142”×87”×83” (3600×2200×2100mm)	165”×95”×83” (4200×2400×2100mm)	272”×114”×83” (6900×2900×2100mm)
Net Weight	5600 lbs (1520 kg)	4520 lbs (2050 kg)	8819 lbs (4000 kg)
Z-Axis Travel	11 inches (280 mm)	11 inches (280 mm)	11 inches (280 mm)
Material Thickness	Up to 5 inches (130 mm)	Up to 5 inches (130 mm)	Up to 5 inches (130 mm)
Cutting Thickness	Up to 4 inches (100 mm) with appropriate tooling	Up to 4 inches (100 mm) with appropriate tooling	Up to 4 inches (100 mm) with appropriate tooling
Worktable Surface	Phenolic composite grid vacuum table with aluminum T-slots
File Format Support	DXF, AI, CDR, NC, G-code with automatic G-code generation
Compatible Software	VCarve, Aspire, Alphacam, Engview, and more
Movement Type	Gantry movement
Drive System	Servo-driven motors
Transmission	XY-Axis: Helical rack-and-pinion with linear guides Z-Axis: Ball screw with linear guides
Speed	Max travel speed: 131 ft/min (40 m/min)
Precision	±0.004 inches (±0.05 mm/300 mm)
Repeatability	±0.002 inches (±0.05 mm)
Spindle Power	12 HP (9 kW)
Spindle Speed	Up to 24,000 RPM (air-cooled). Options include Hiteco or HSD spindles
Tool Holder	ISO 30
Tool Change	5-position linear tool rack	6-position linear tool rack	12-position linear tool rack

Visualization

Video

Content

Industrial Computer Controller

Supported File Formats:

G-code (.gcode, .nc): Machine-ready files for CNC operations.

DXF (.dxf): Standard for 2D designs and CAD drawings.

SVG (.svg), EPS (.eps), AI (.ai): Vector formats for detailed designs.

STEP/IGES (.step, .iges): 3D CAD formats for advanced machining.

CAM Software Compatibility:
Compatible with leading CAM software, including:

EnRoute

VCarve

Vectric Aspire

Fusion 360

9kW Air Cooled Spindle

LINEAR Automatical Tool Change

Linear Guide Rails

Servo Motors

Ball Screws Transmission

Vacuum Table

High-strength vacuum table with multiple zones for efficient material hold-down during cutting.
Suitable for various materials like wood, acrylic, aluminum, and composites.

Dust Collection System

Integrated dust collection port for a clean working environment and improved machine lifespan.

Vacuum Zones

4 Zones Control for 4x8 ft
6 Zones Control for 5x10 ft
Customizable

Desktop/Laptop Only

Servo Motors

Vacuum Table

Dust Collection System
