SR Series

Heavy-duty CNC router engineered for extra-large, extra-thick, and extra-heavy materials. The SR Series CNC Router, short for "Super Router", is a heavy-duty CNC machine engineered for machining extra-large, extra-thick, and extra-heavy materials.

POWER SUPPLY
220V Three Phase

CONTROL SYSTEM
Weihong / Syntec / Siemens

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Air Cooling

SPINDLE POWER
9000 Watt

SPINDLE RPM
24000 RPM

With robust construction, exceptional machining performance, and flexible customization options, the Mintech SR Series CNC Router is built to meet the demands of heavy-duty industrial applications. Engineered for precision machining of aluminum, copper, composites, and engineering plastics, the SR Series is trusted for its stability and accuracy across industries such as architecture, power generation, shipbuilding, aerospace, and automotive. Within the Mintech product lineup, it stands as the Super Router.

Key Features:

Heavy-Duty Construction – Industrial-grade welded steel frame and components built for continuous operation in demanding environments
High-Performance Spindle – Powerful, precision-balanced spindle system for superior cutting and engraving performance
Advanced CNC Control – State-of-the-art CNC system ensures precise, repeatable operations
Servo Motor Drive System – High-torque servo motors provide smooth, accurate positioning with rapid response
Professional Automatic Tool Changing – Increases productivity and flexibility for multi-process machining
High-End Customization – Options for oversized heavy-duty industrial builds, including tailor-made 4-axis and 5-axis CNC Router configurations
Localized Technical Support – Rooted in California, Serving the Entire USA with CNC training, installation, and maintenance services

Applications:

Woodworking & Furniture – Precision cutting and shaping for kitchen cabinets and custom furniture
Architectural Decoration – Aluminum curtain walls, landscape structures, storefronts, and exhibition design
Sign Manufacturing – Large sign columns, outdoor signage, and professional advertising boards
Mechanical Components – Cutting and machining of engineering plastics, copper, and aluminum parts
Industrial Fabrication – Production of aluminum frames and panels for automotive, aerospace, and shipbuilding
Aquariums & Pools – Machining oversized and extra-thick acrylic sheets for aquariums and infinity pools

Performance Advantages:

Superior surface finish quality with minimal post-processing required
High-speed machining with exceptional dimensional accuracy
Versatile compatibility with wood, composites, plastics, and non-ferrous metals
Reliable operation in demanding industrial production environments
Advanced safety features and operator protection systems
Localized training, installation, and after-sales service – Rooted in California, Serving the Entire USA

The Mintech SR Series Heavy-duty CNC Router combines decades of CNC expertise with modern technology, delivering unmatched performance and reliability for mission-critical applications. Rooted in California, we provide localized support and serve manufacturers nationwide.

Plastics and Acrylic Panels
- Ideal for oversized, high-thickness acrylic panels used in industrial and architectural applications.
Extra-Thick Metal Sheets
- Specially designed for high-strength aluminum and copper plates in industries like aerospace, shipbuilding, and power systems.
Composite Materials
- Precision machining of insulation boards, honeycomb panels, carbon fiber composites, and other advanced materials.
Hard Wood and Plywood
- Tailored for large-scale wood machining in the furniture and decorative industries.

Product Documents

Documentation Available

Complete product documentation including manuals, technical specifications, and installation guides.
Contact our technical team to request specific documentation for this product.

Request Document

Technical Specifications

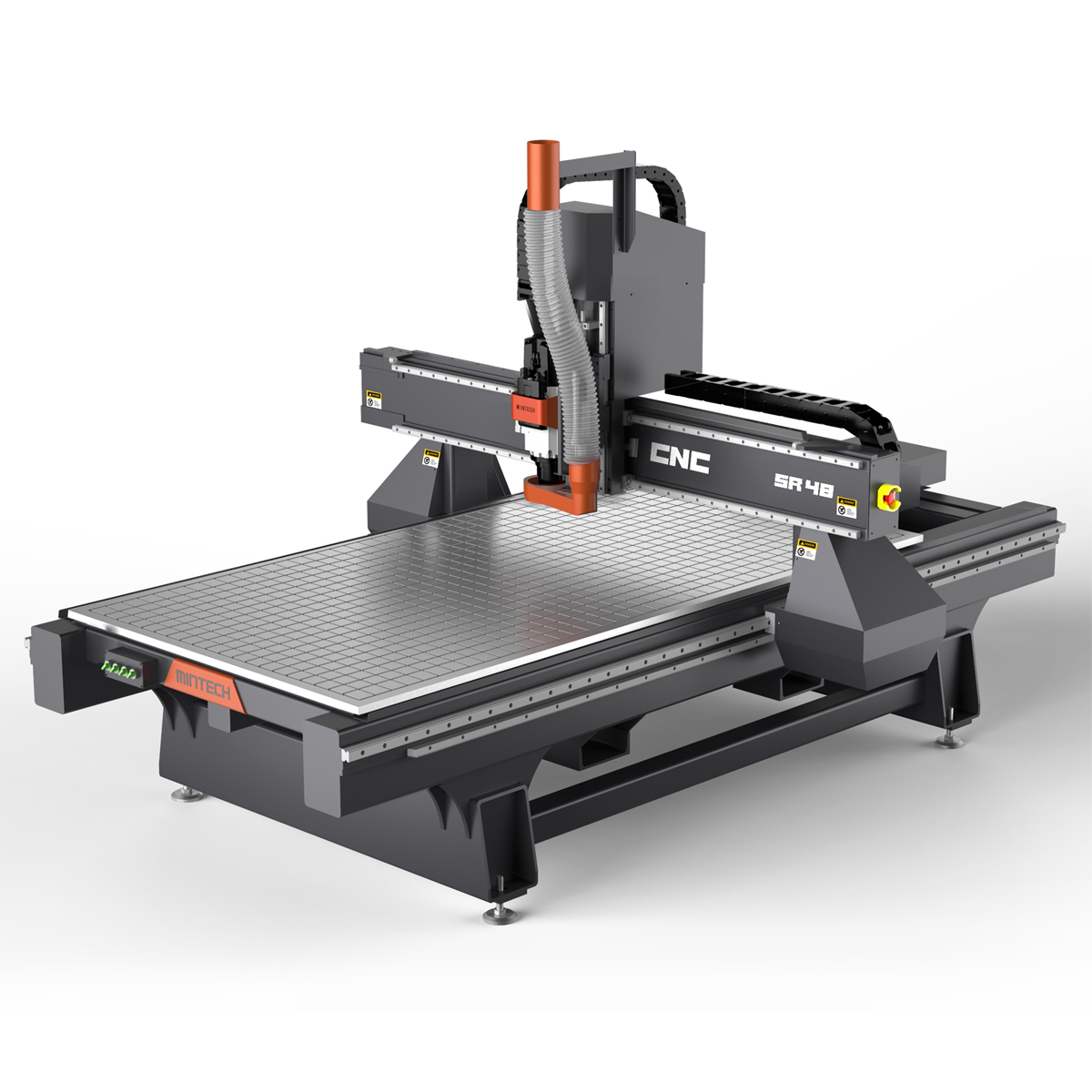

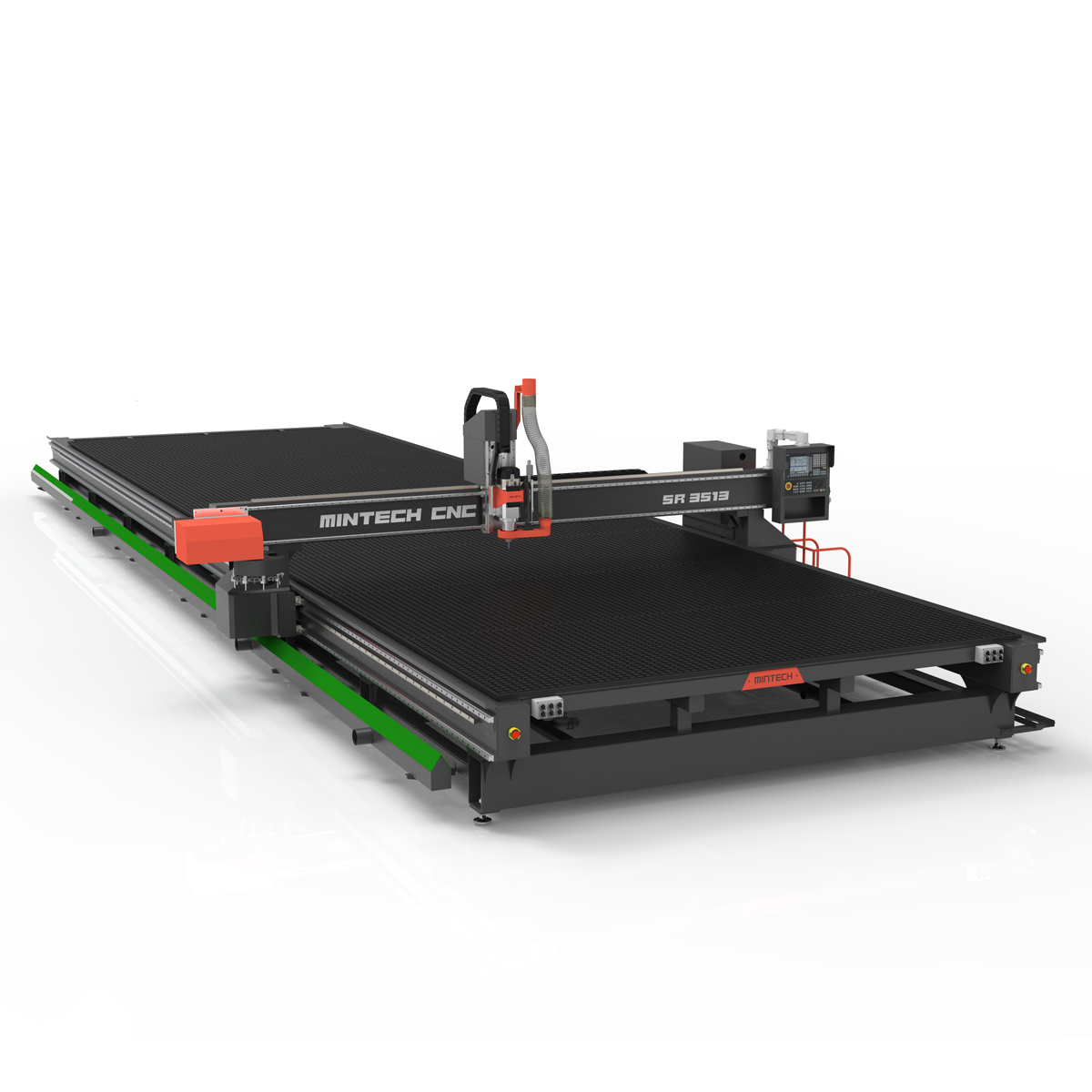

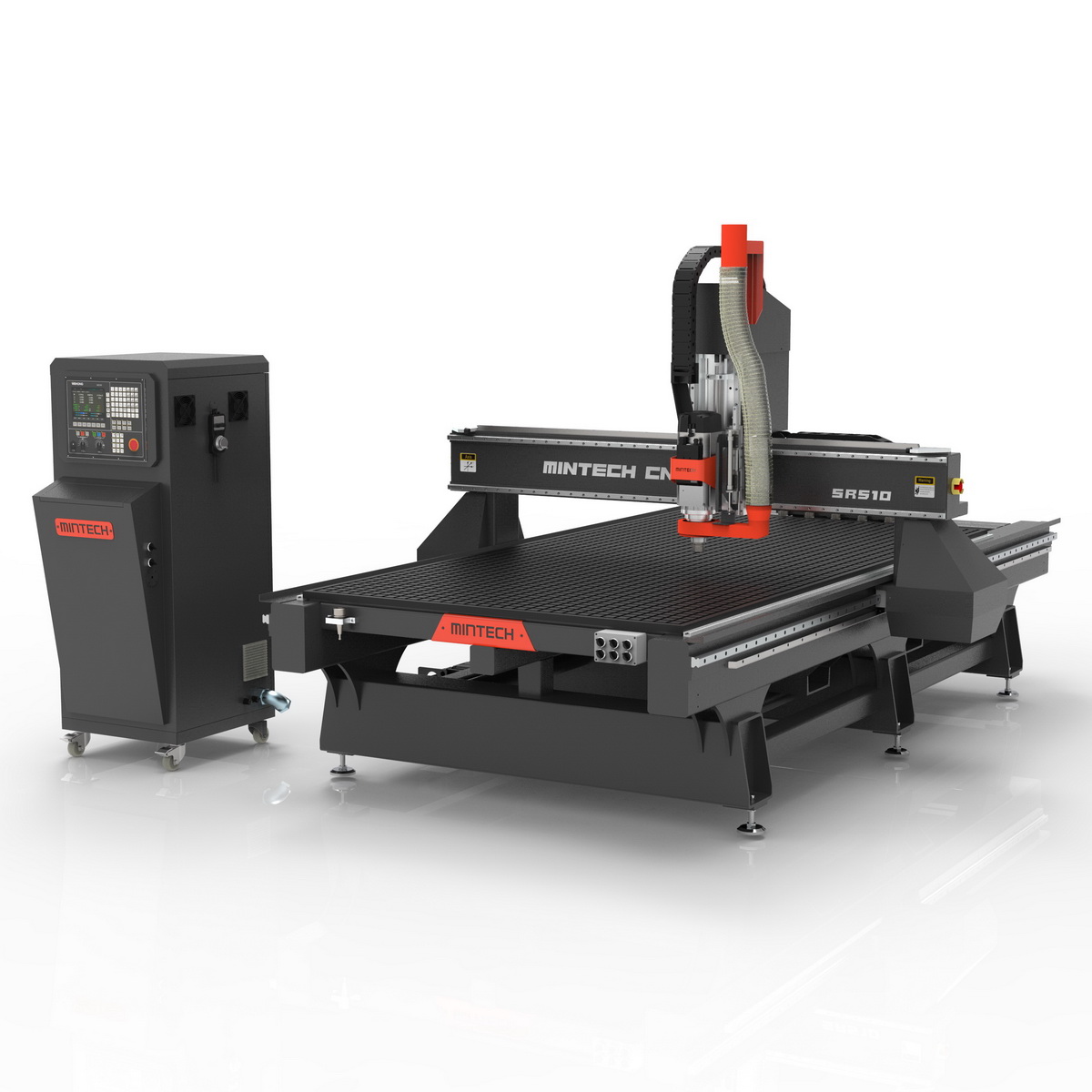

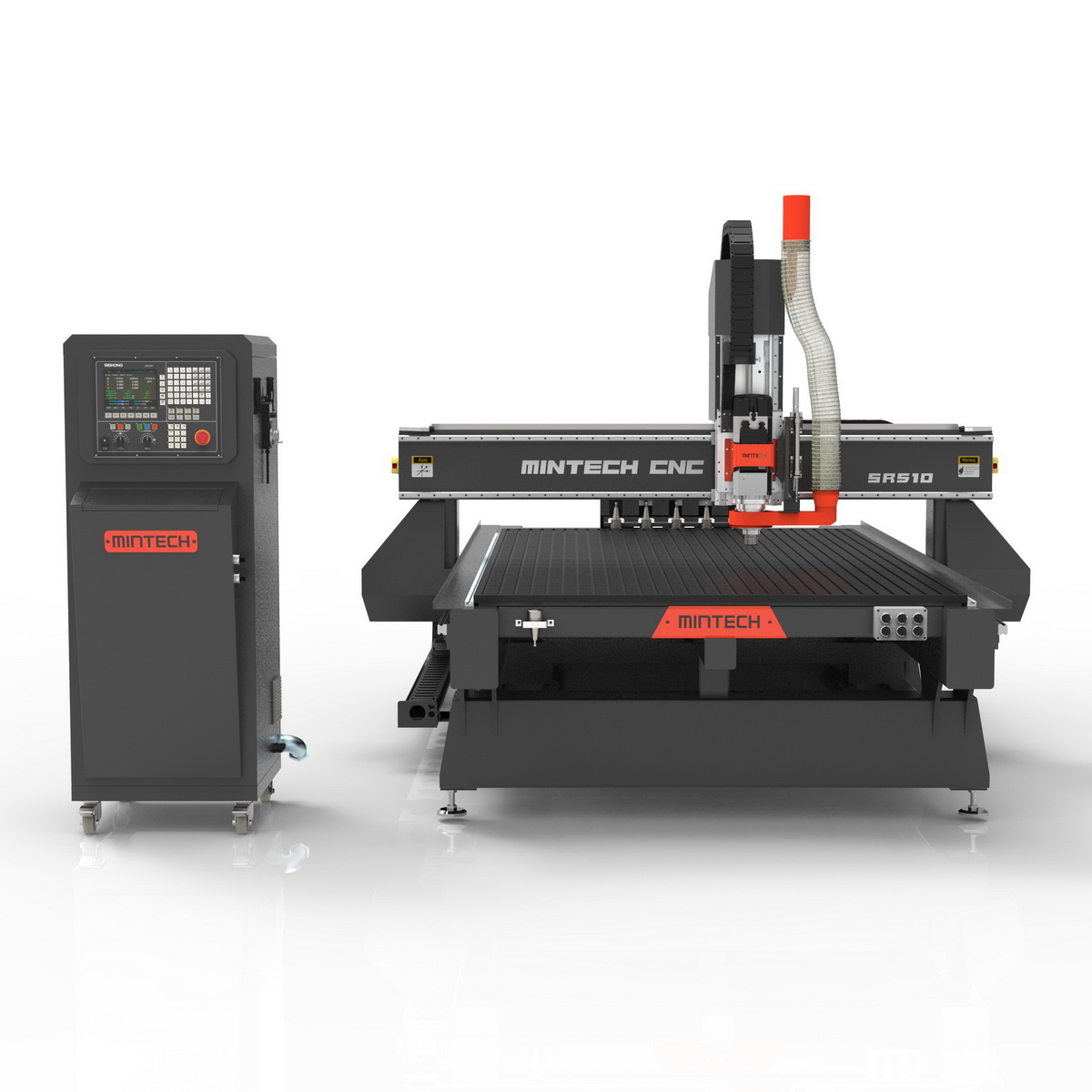

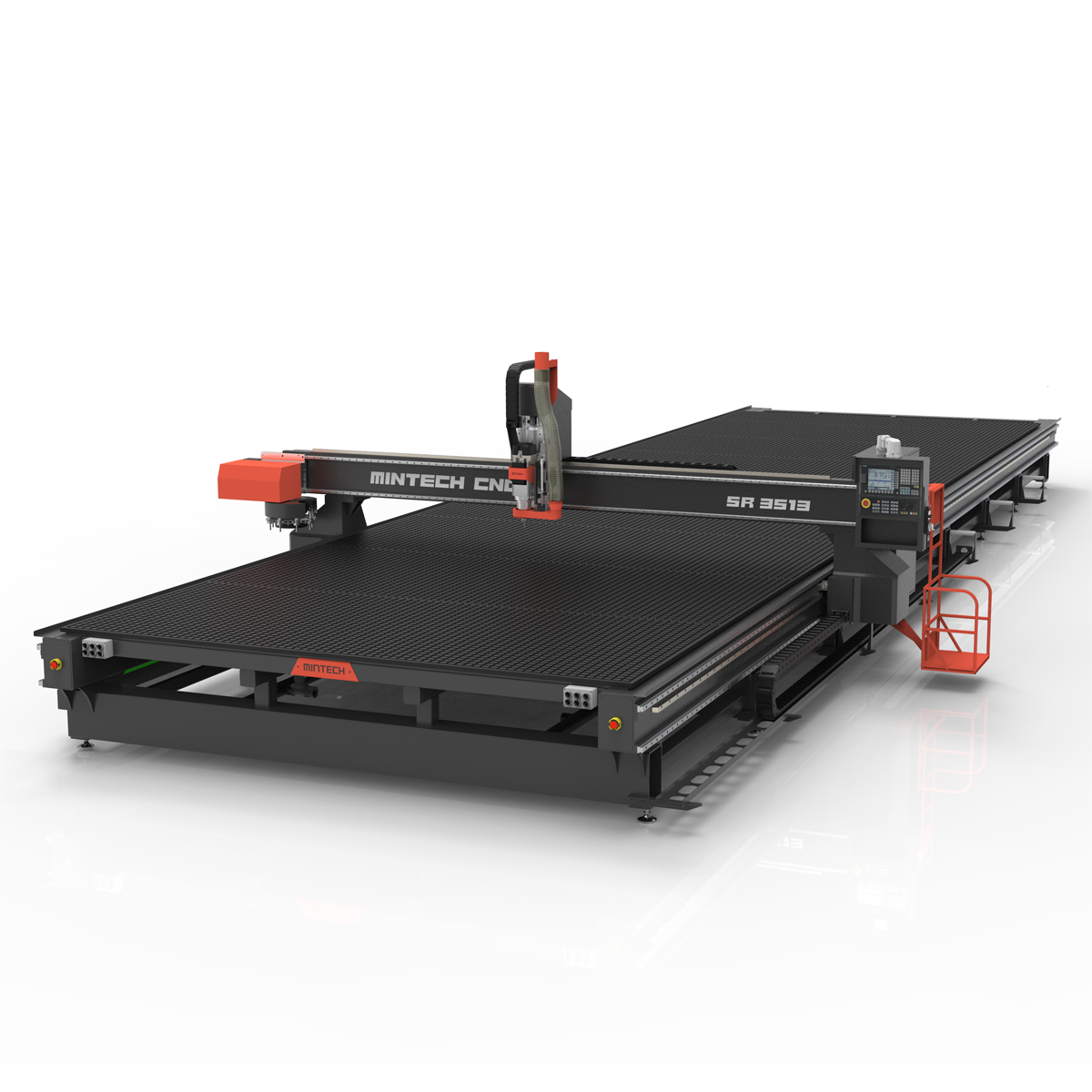

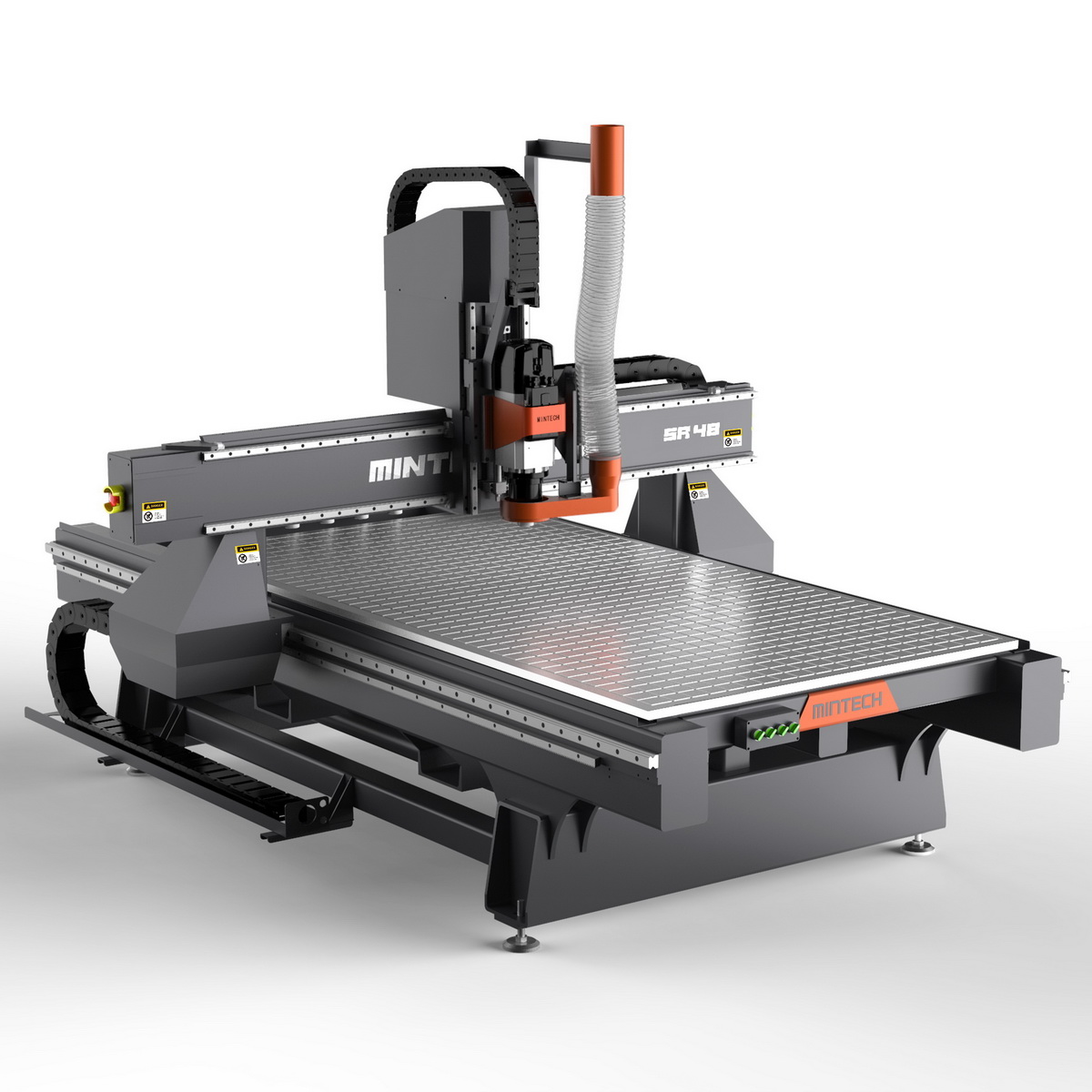

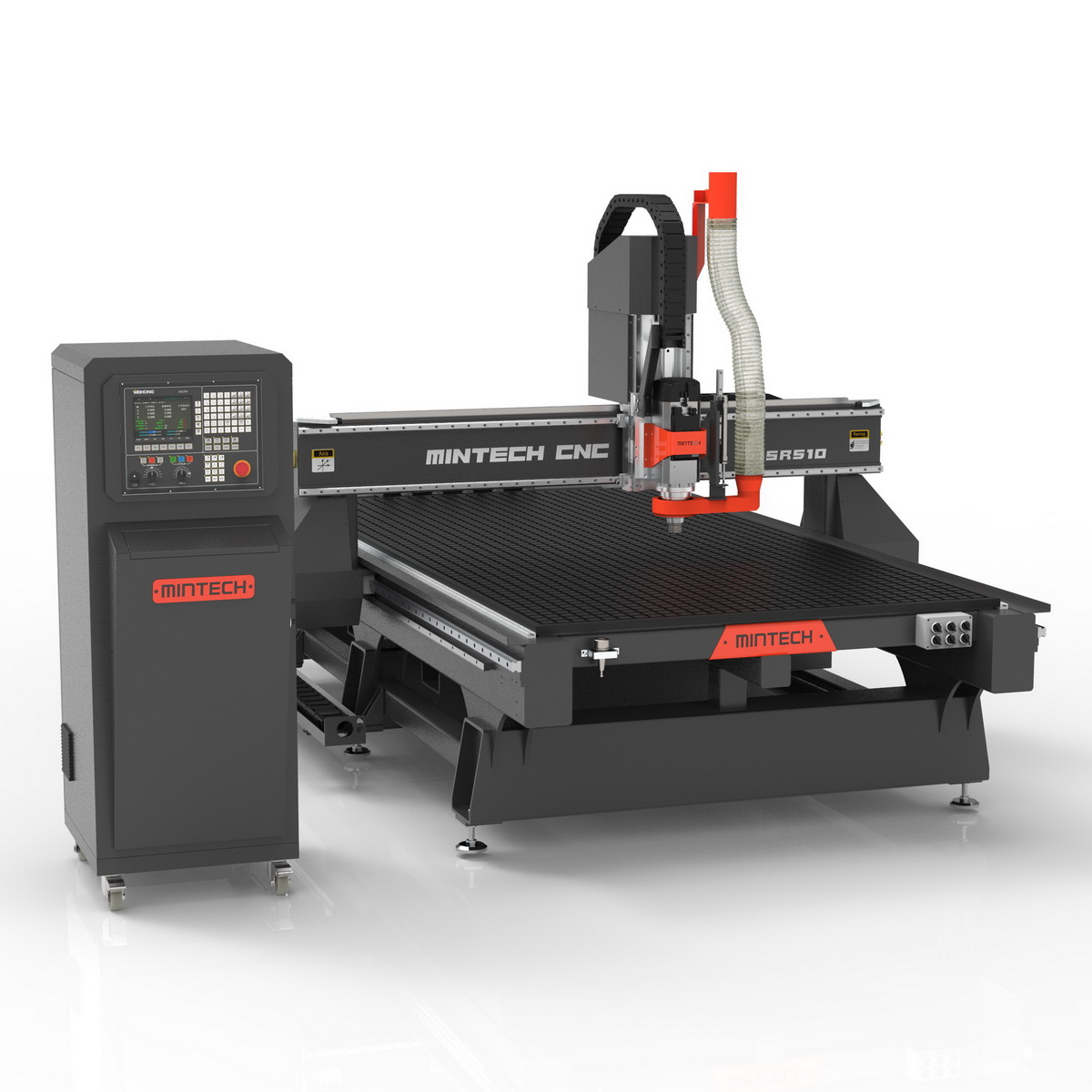

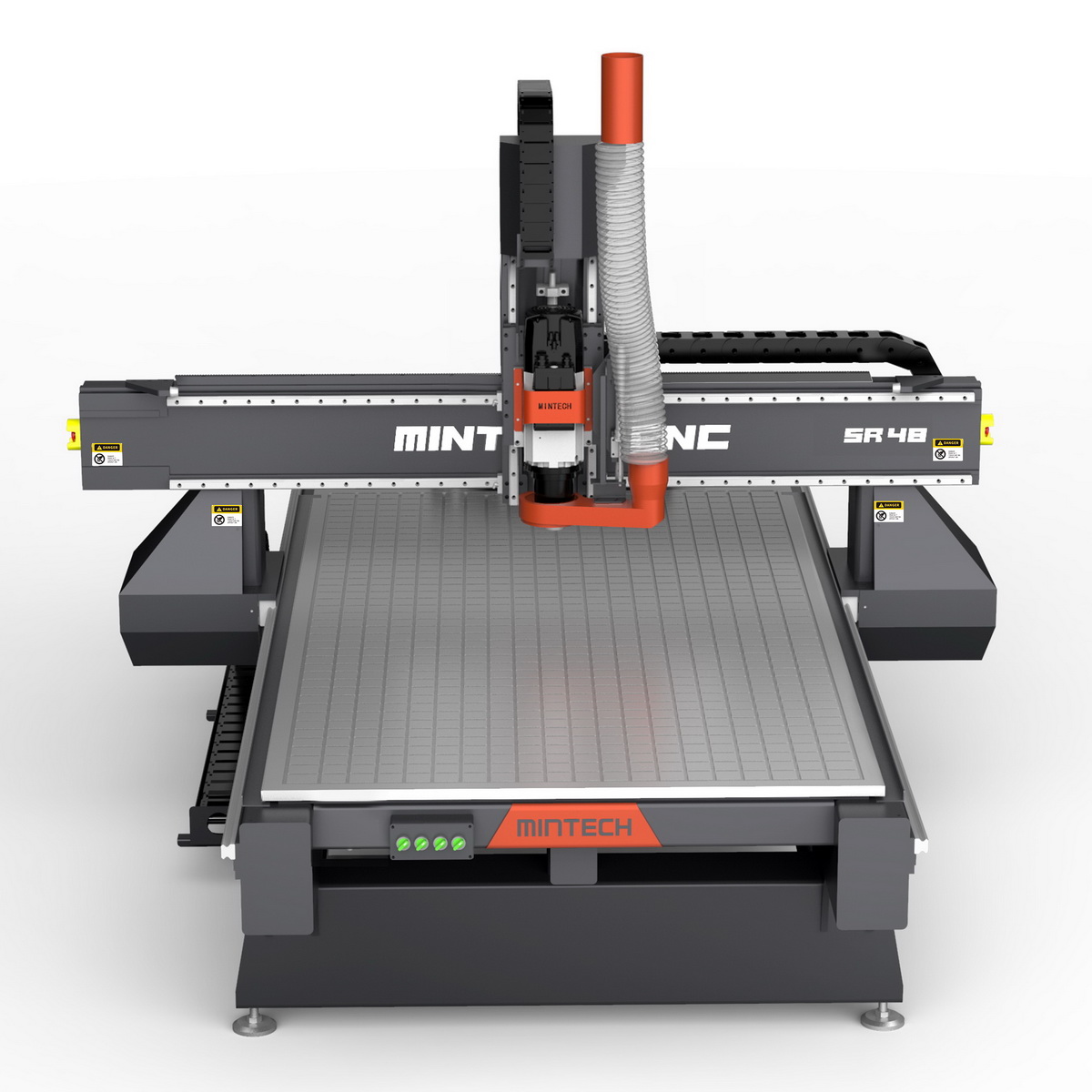

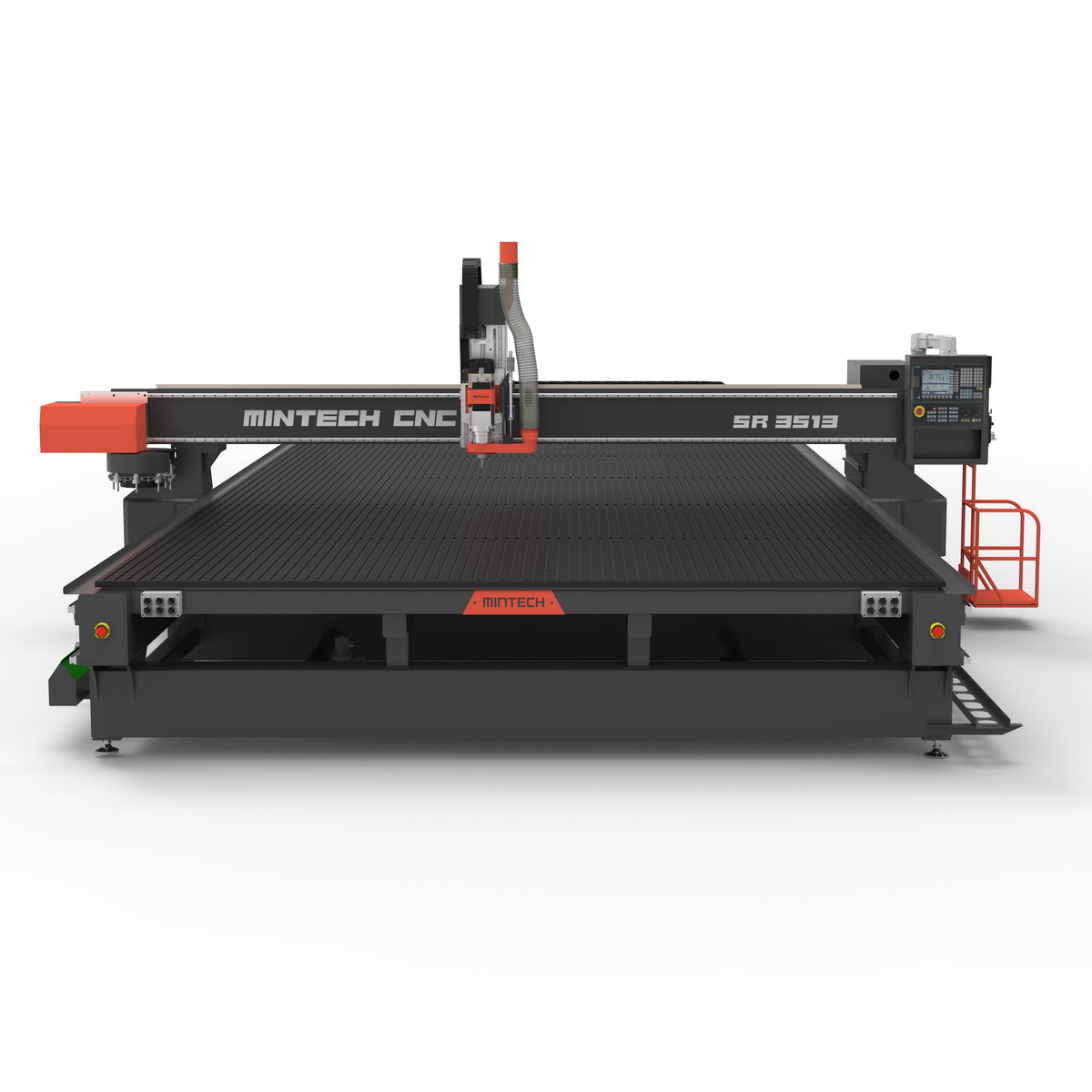

Model	SR48	SR510	SR3513
Working area	4'× 8' ( 1250 × 2500 mm )	5' × 10' ( 1530 × 3060 mm )	11' × 43' ( 3500 × 13000 mm )

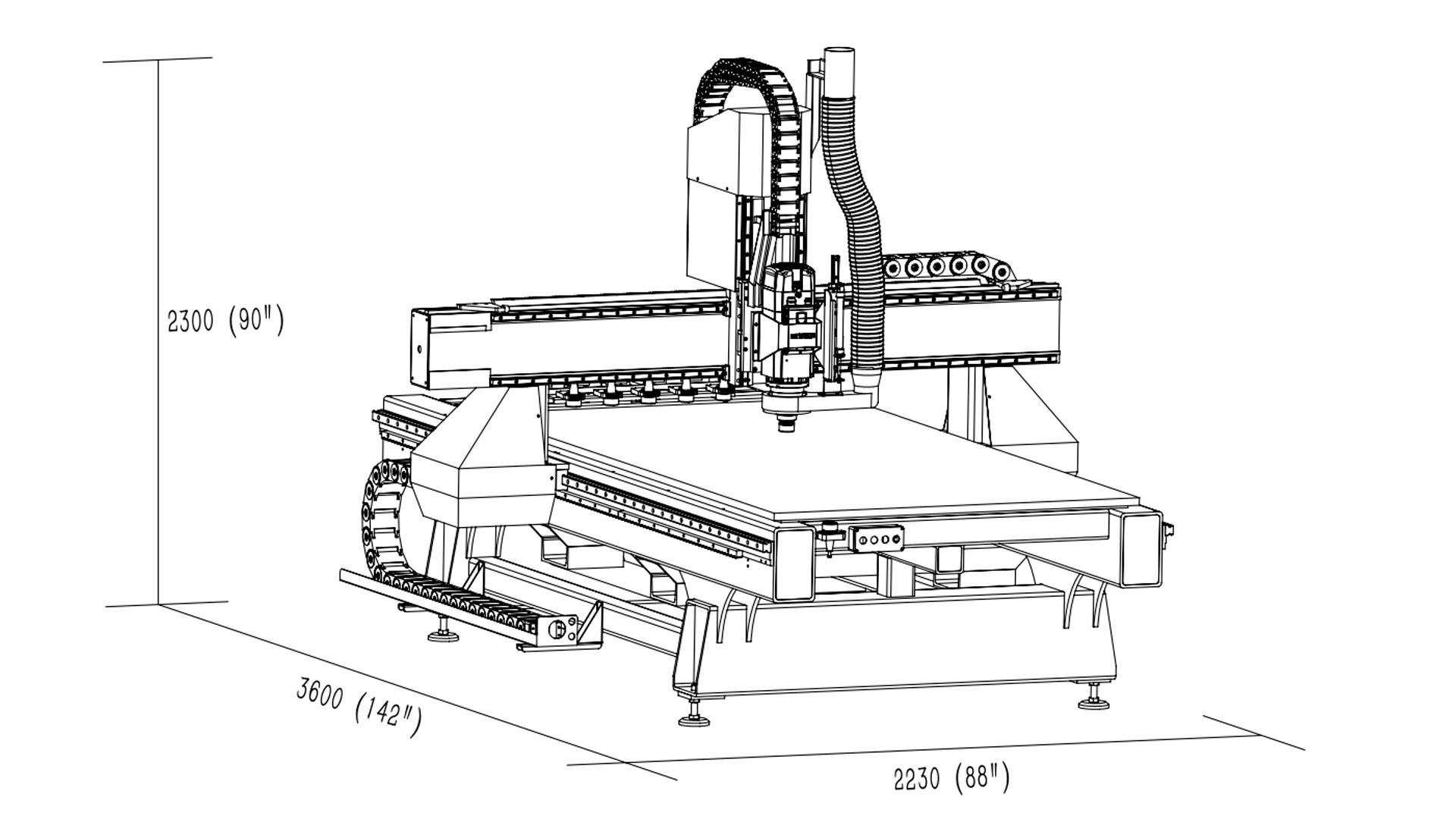

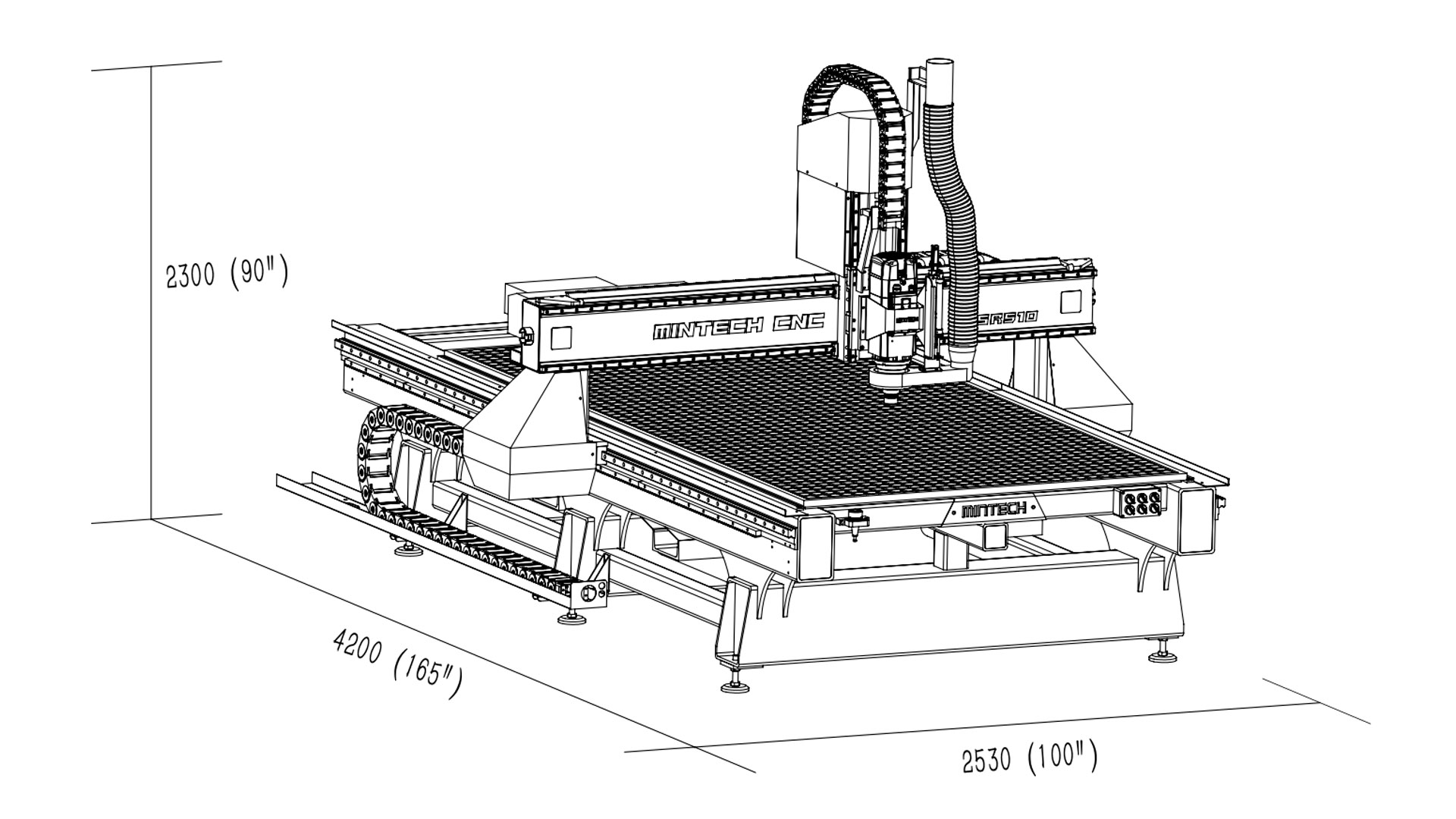

Dimensions	142" × 88" × 90" ( 3600 × 2230 × 2300 mm ) View image	165" × 100" × 90" ( 4200 × 2530 × 2300 mm ) View image	551" × 217" × 90" ( 14000 × 5500 × 2300 mm ) View image
Z-Axis Travel	11 inches ( 280 mm )	11 inches ( 280 mm )	25 inches ( 650 mm )
Material Thickness	≤ 7 inches ( 180 mm )	≤ 7 inches ( 180 mm )	≤ 13 inches ( 350 mm )
Working Surface	Phenolic composite vacuum table with precision-milled grid and T-slot aluminum.

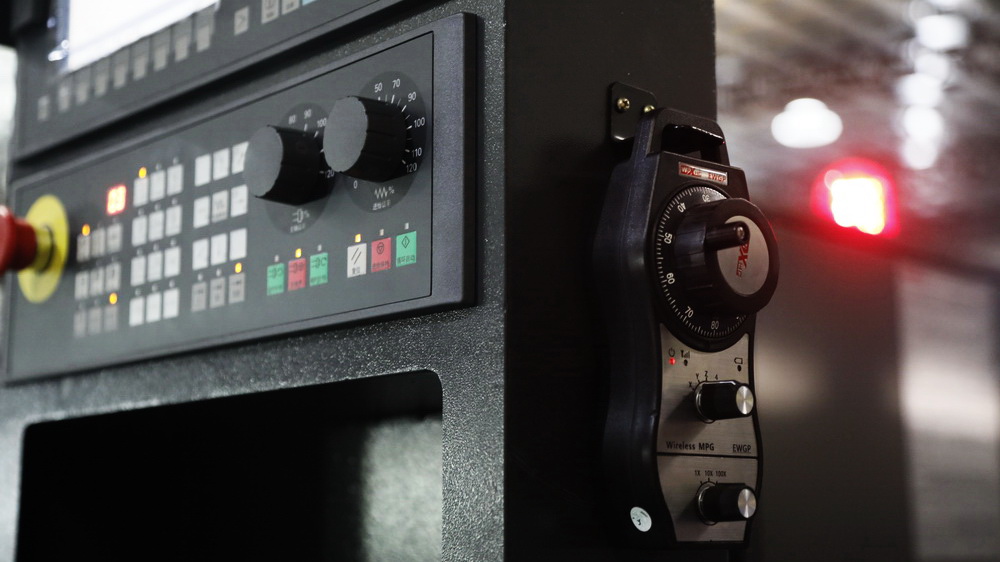

Control System	Industrial-grade CNC system supporting file formats like DXF, AI, CDR, NC, G-code for 2D and 3D machining. Compatible with industrial controllers such as Weihong, Syntec, and Siemens.
CAM Software Compatibility	Compatible with industry-standard software like VCarve, Aspire, Alphacam, Engview, MasterCAM, Enroute, Type 3 and others
Drive System	Motion Type: Gantry movement. Drive Type: Servo-driven motors. Transmission: XY-Axis: Precision helical rack-and-pinion with linear guides. Z-Axis: Ball screw with linear guides. Speed: Max travel speed: 131 ft/min ( 40 m/min ). Precision: Positioning accuracy: ±0.004 inches ( ±0.05 mm/300 mm ). Repeatability: ±0.002 inches ( ±0.05 mm ).

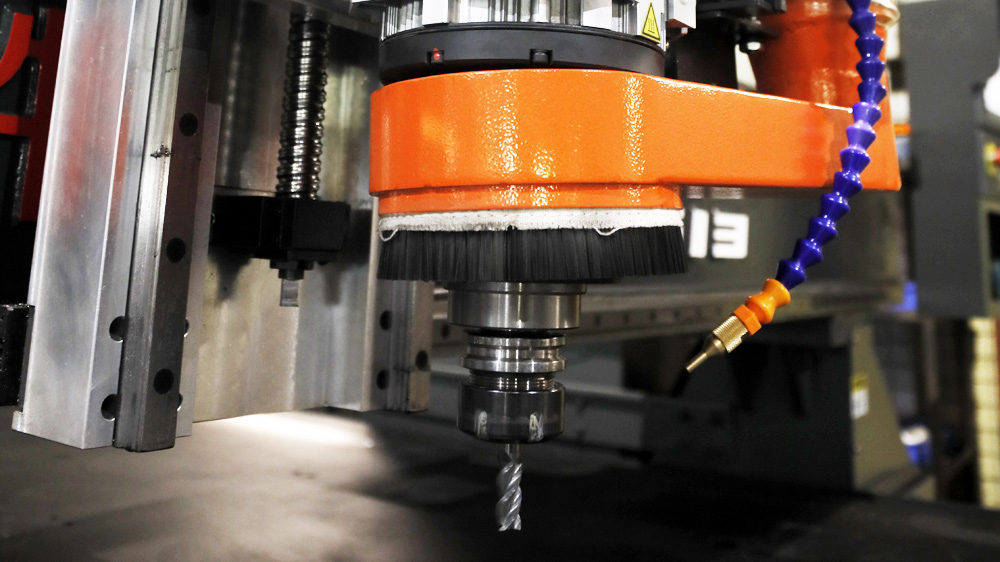

Spindle	Power: 12 HP (9 kW). Speed: 24,000 RPM (air-cooled). Options: Hiteco or HSD spindles. Tool Holder: ISO 30 with ER32 collets.

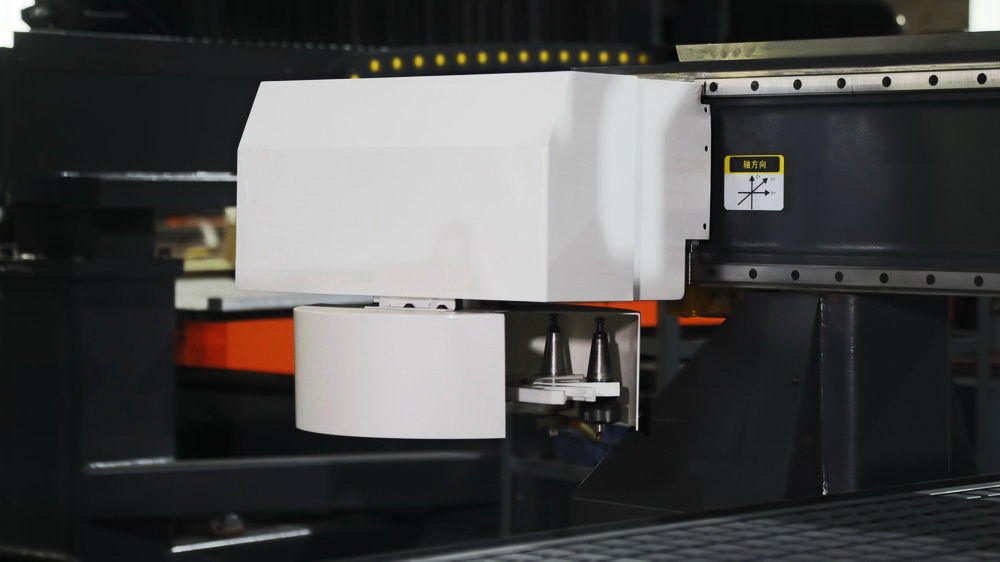

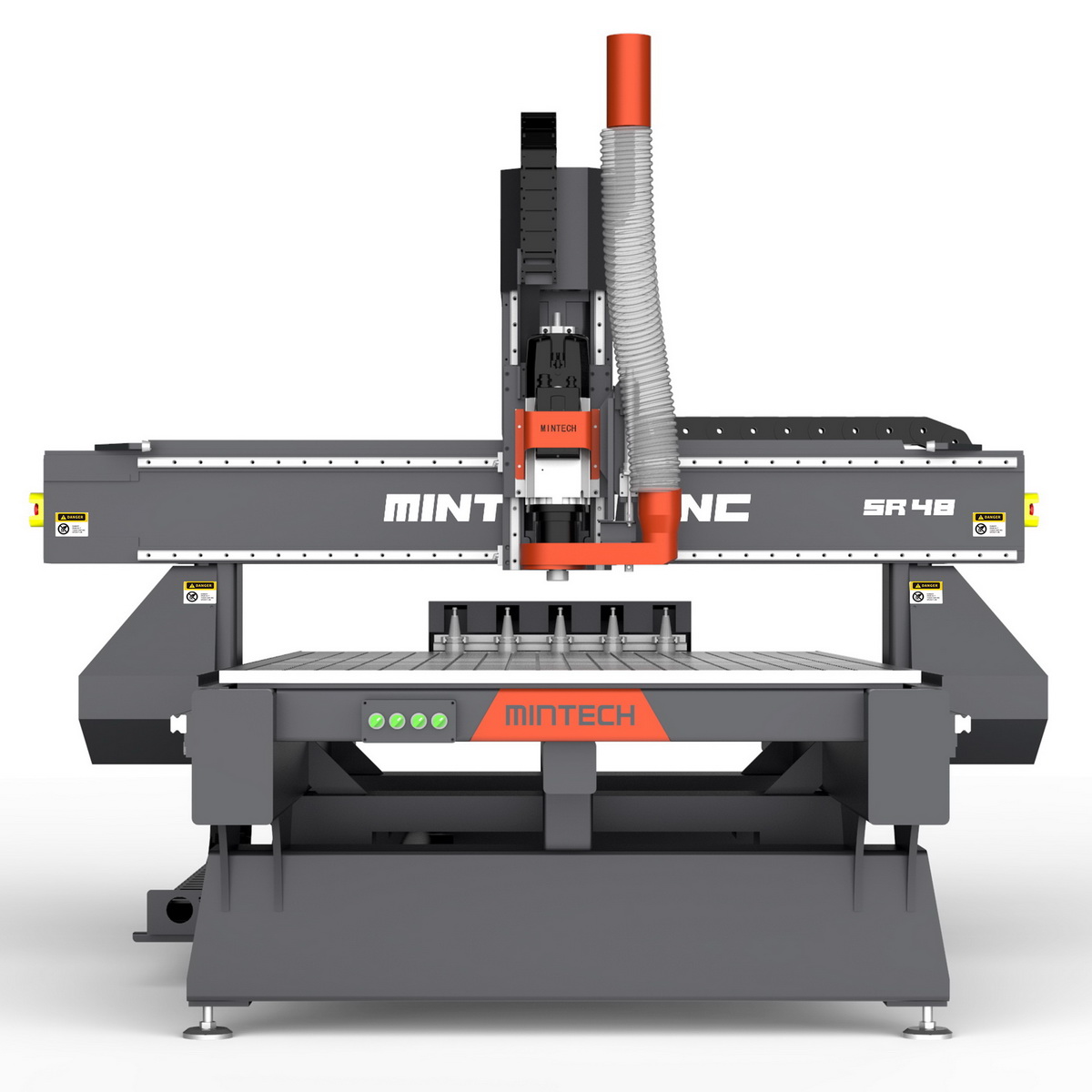

Tool Changing System	5-position linear tool rack (standard). 8-position rotary tool changer (optional). Fully customizable options available.
Power and Utility Requirements	Main Power: 208-240V, 3-phase, 60 Hz, 63A. Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min). Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).
Cooling method	Air Cooling
Environmental Requirements	Temperature: 10-40°C. Humidity: 40-60%.
Available Configurations	Optional high-resolution CCD camera for precise positioning and material alignment. Optional automatic tapping system. Optional 4-axis / 5-axis multi-axis system
Advantages	Heavy-Duty Performance: Designed for large-scale machining of oversized and heavy materials. Exceptional Precision: High-accuracy transmission systems ensure flawless machining of complex geometries. Customization Flexibility: Tailored to meet specific industrial requirements, with options for larger sizes and additional functions. Versatile Applications: Supports a wide range of industries and materials, from aerospace components to exhibition panels. Durability: Built to endure high loads and long-term operation, ensuring reliable performance.
