MF Series
Mintech MF Series fiber laser cutting system represents cutting-edge technology in high-precision metal fabrication. Engineered for industrial applications requiring exceptional speed, accuracy, and material versatility, the MF Series delivers superior performance across a wide range of metals and alloys.
220V Single Phase/Three Phase
BOCHU FSCUT2000E
Servo Motor
Water Cooling
Fiber Laser
1500W, 2000W, 3000W, 4000W, 6000W
Mintech's MF Series fiber laser cutting machine is a high-performance, space-saving metal cutting solution. Featuring a fully enclosed protective enclosure for operator safety and a retractable work surface for optimal space utilization, the MF Series offers a wide range of laser power options, including 1500W, 2000W, 3000W, and 6000W, suitable for a wide range of metal cutting applications.
Key Features:
- Fully enclosed protection design – ensures operator safety and effectively reduces laser radiation and dust diffusion.

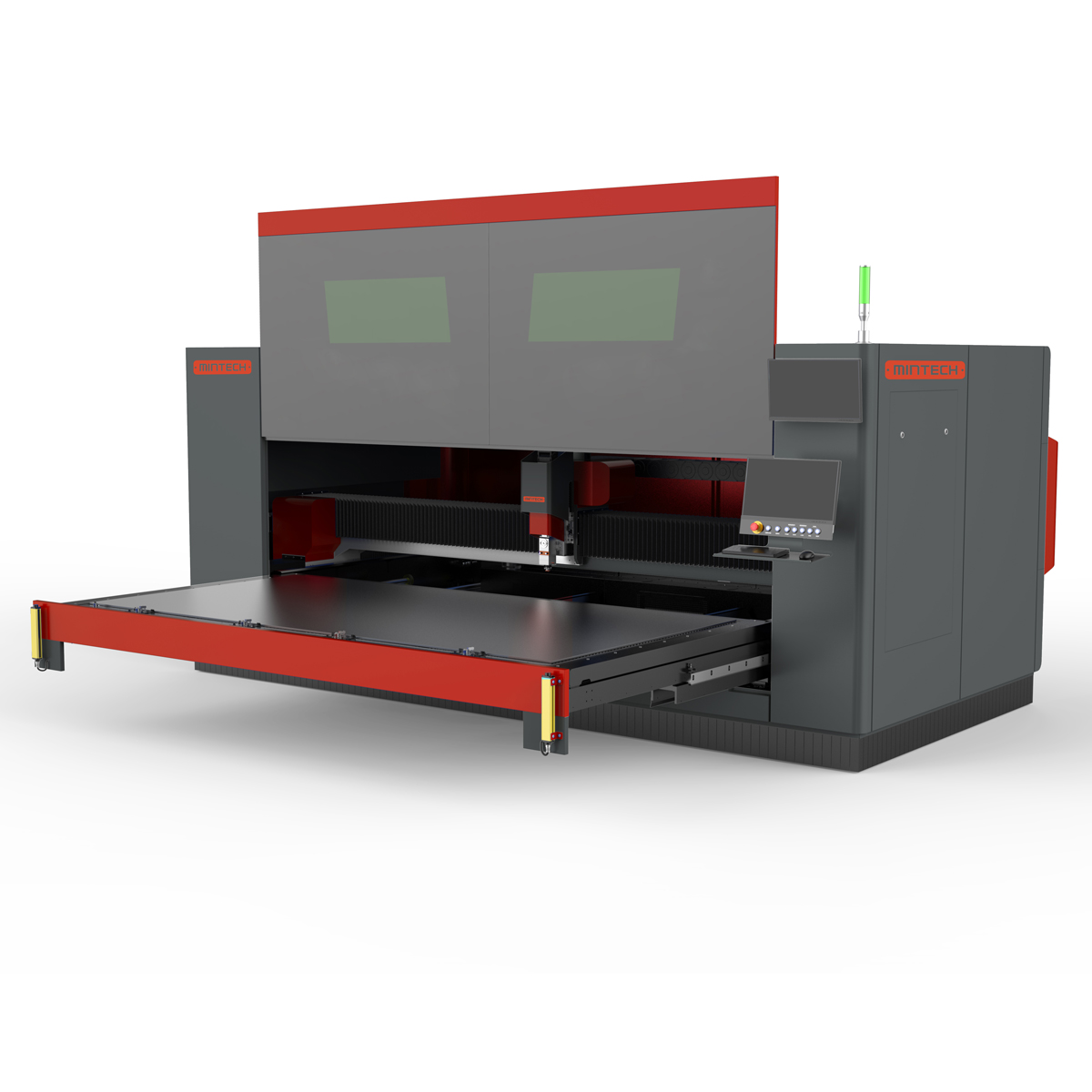

- Retractable work surface – saves space and improves equipment utilization.
- Flexible laser power configuration – 1500W, 2000W, 3000W, and 6000W are available to meet different processing needs.
- Compact and versatile – available in two standard models:

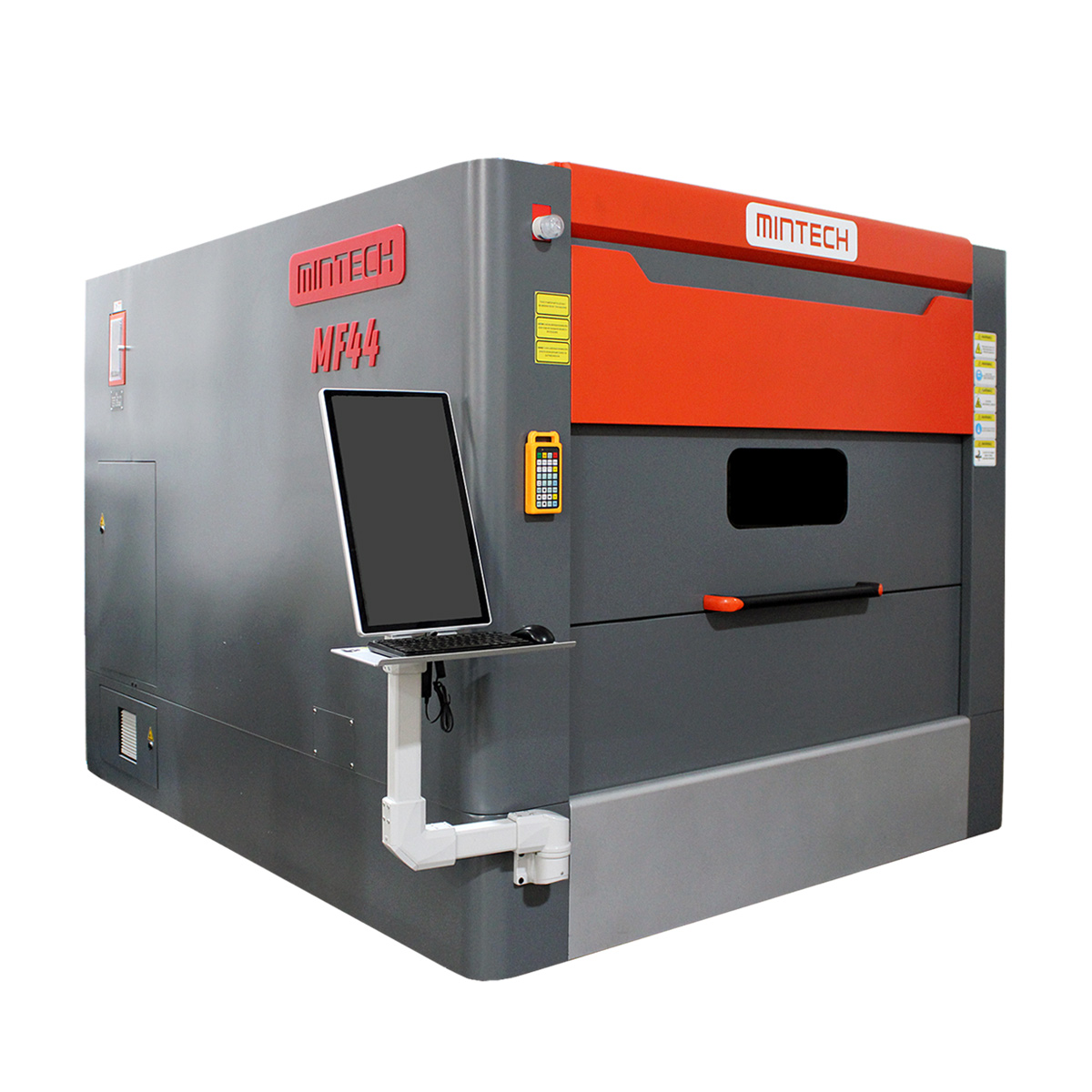

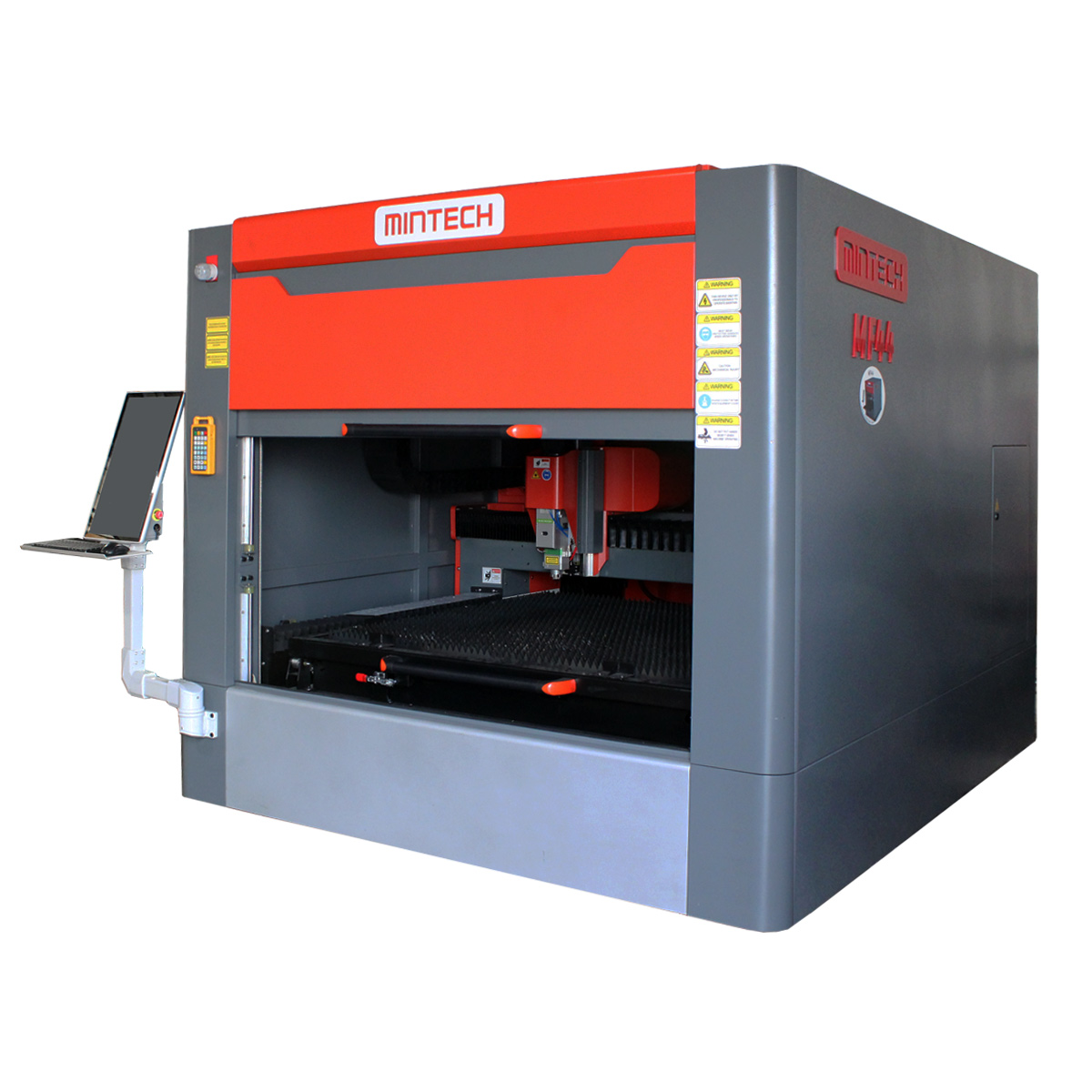

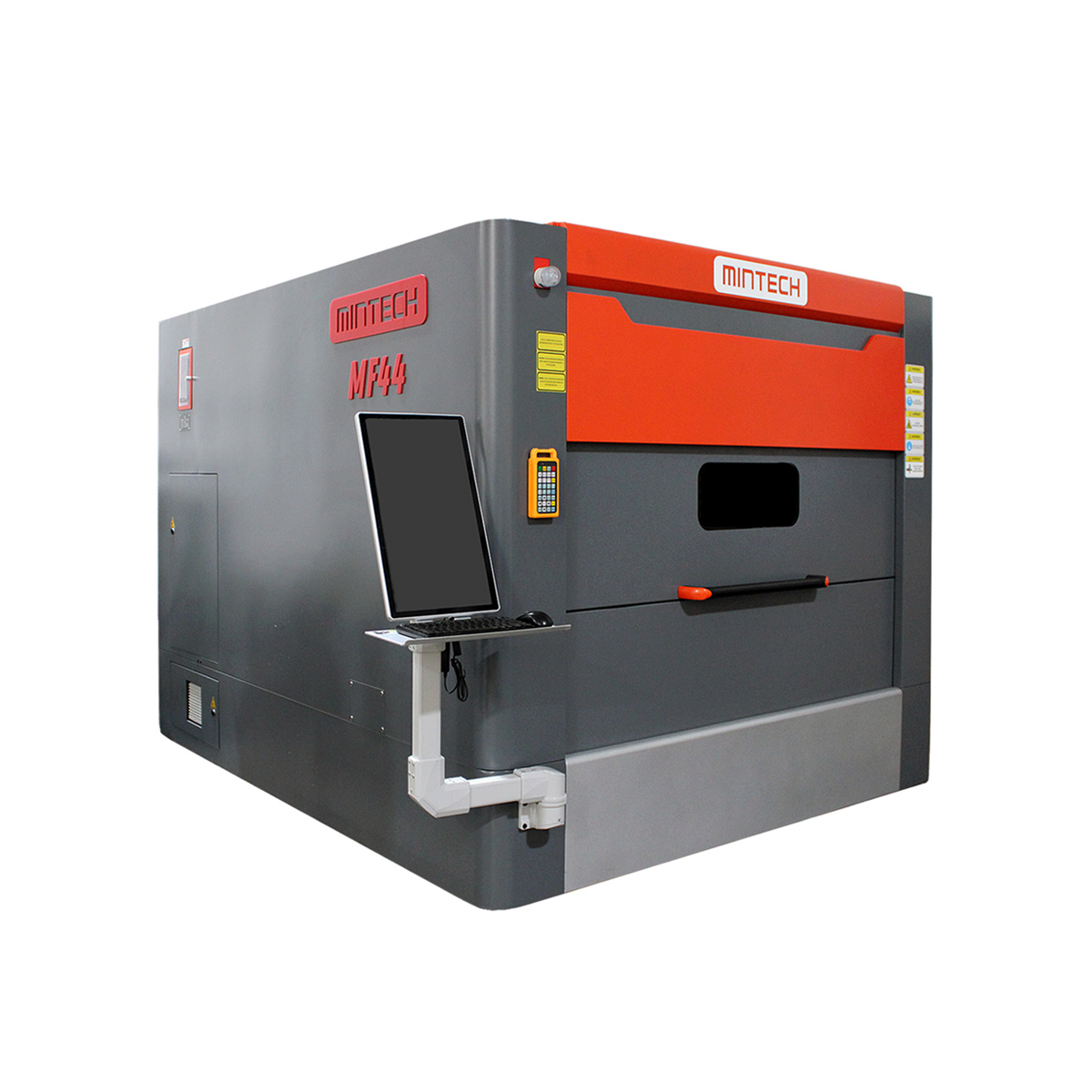

- MF44: 51" × 51" ( 1300 × 1300 mm ) working table, compact and efficient.

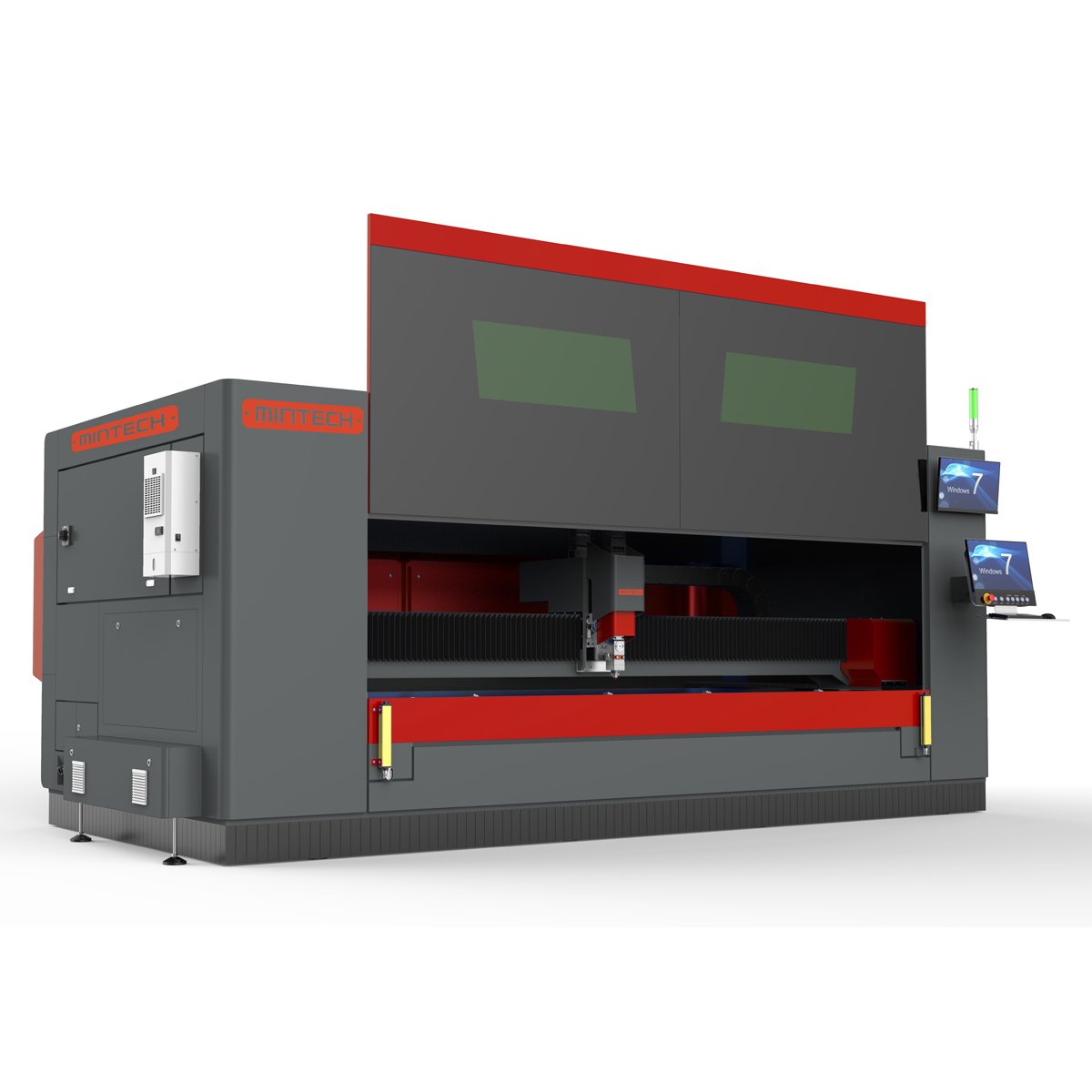

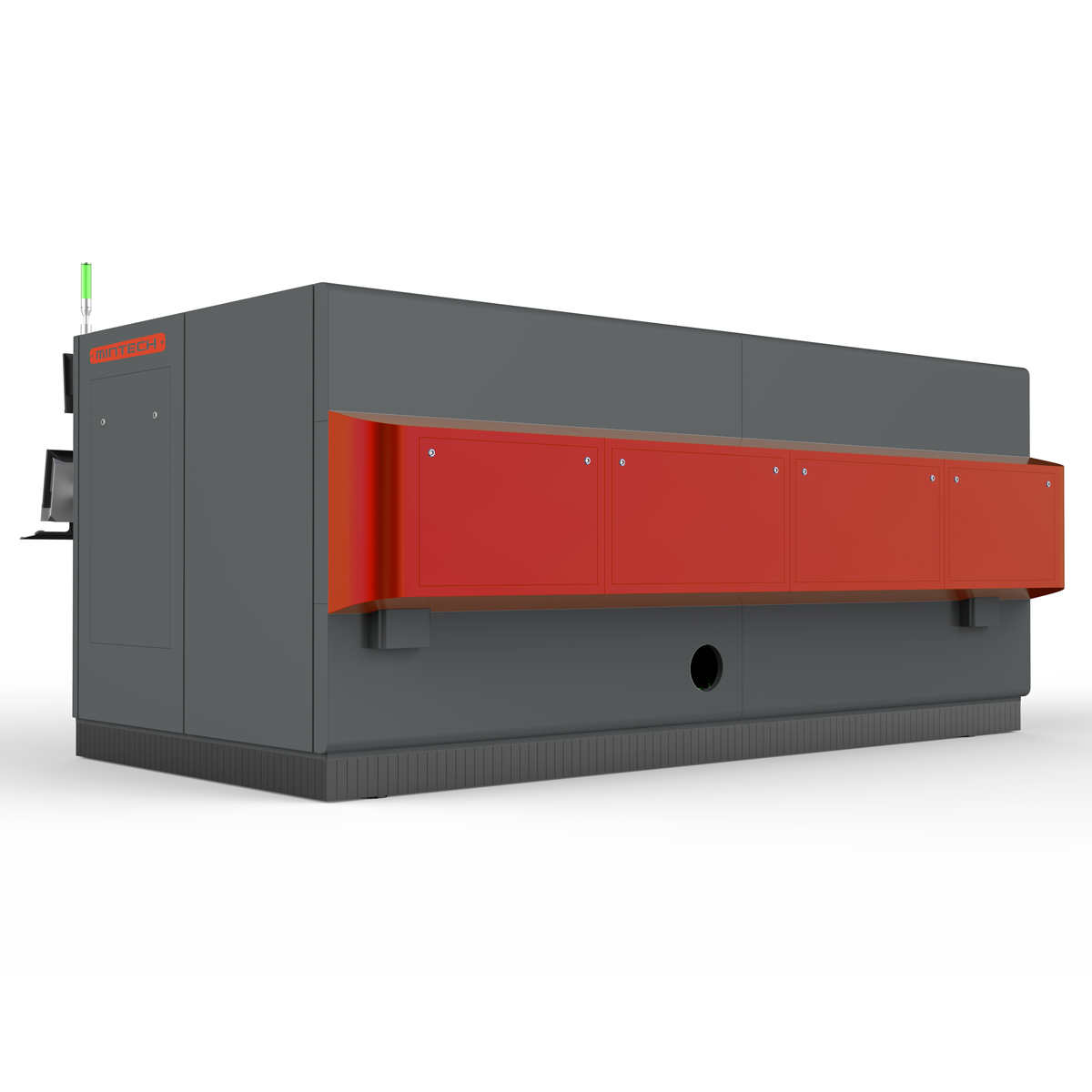

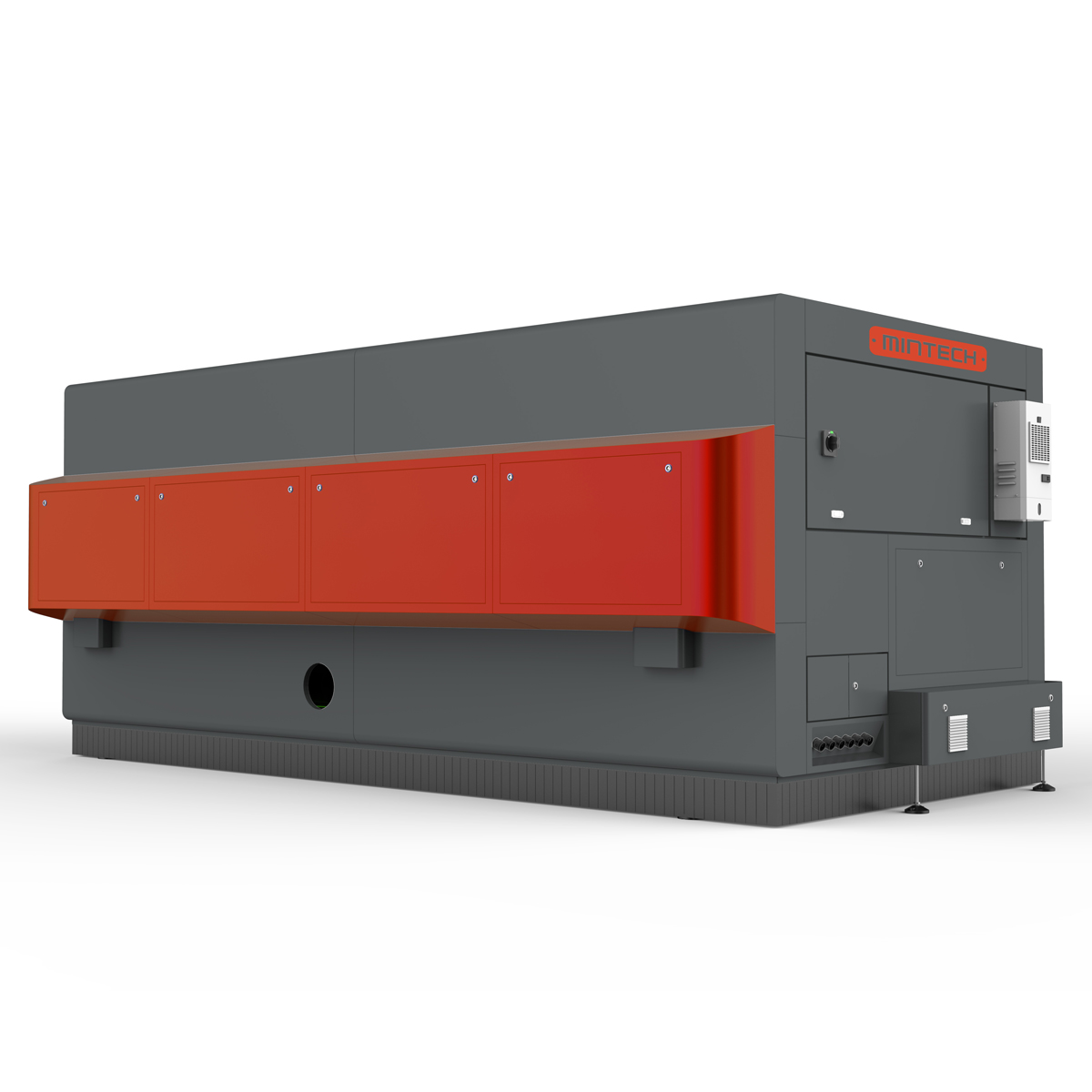

- MF510: 60" × 120" (1500 × 3000mm ) working table, suitable for large-format cutting.
- Single-phase power supply option – The MF44 ( 1500W and 2000W ) can support single-phase or three-phase power supply to adapt to various power environments.
Applications:
- Sheet Metal Processing

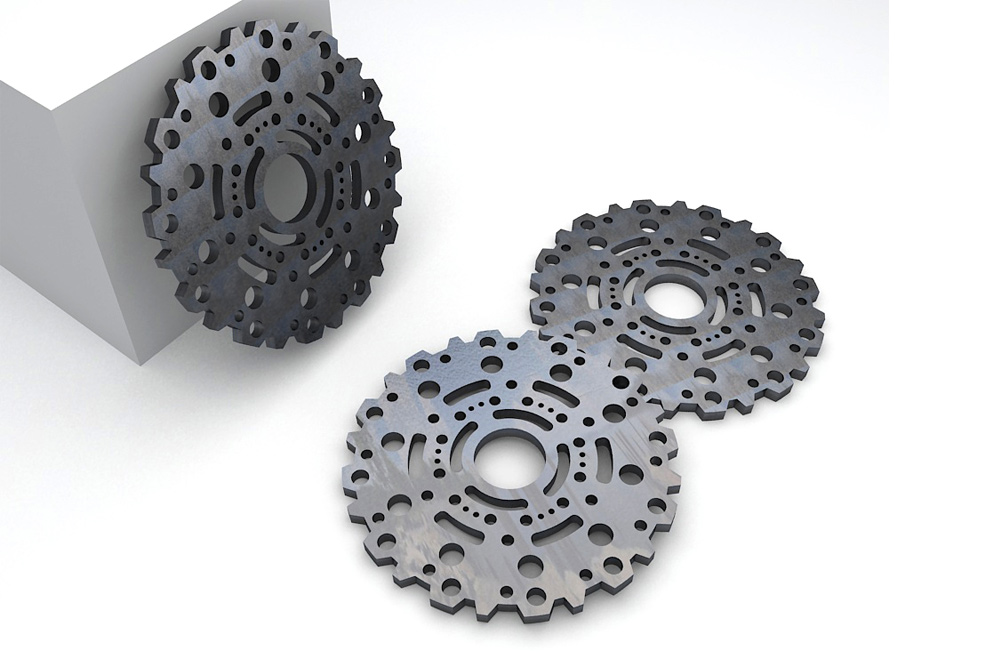

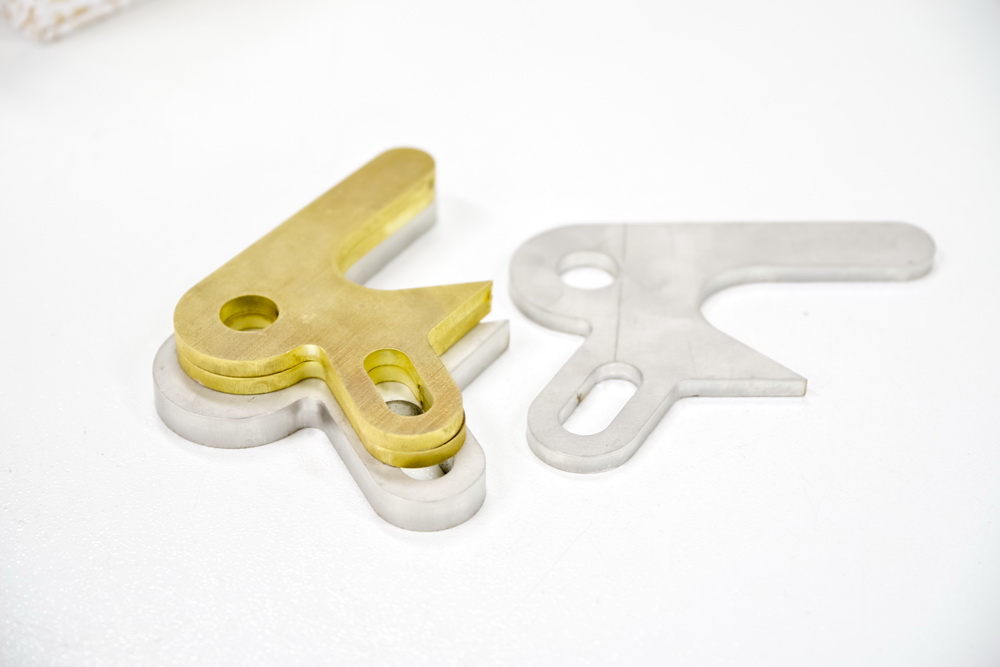

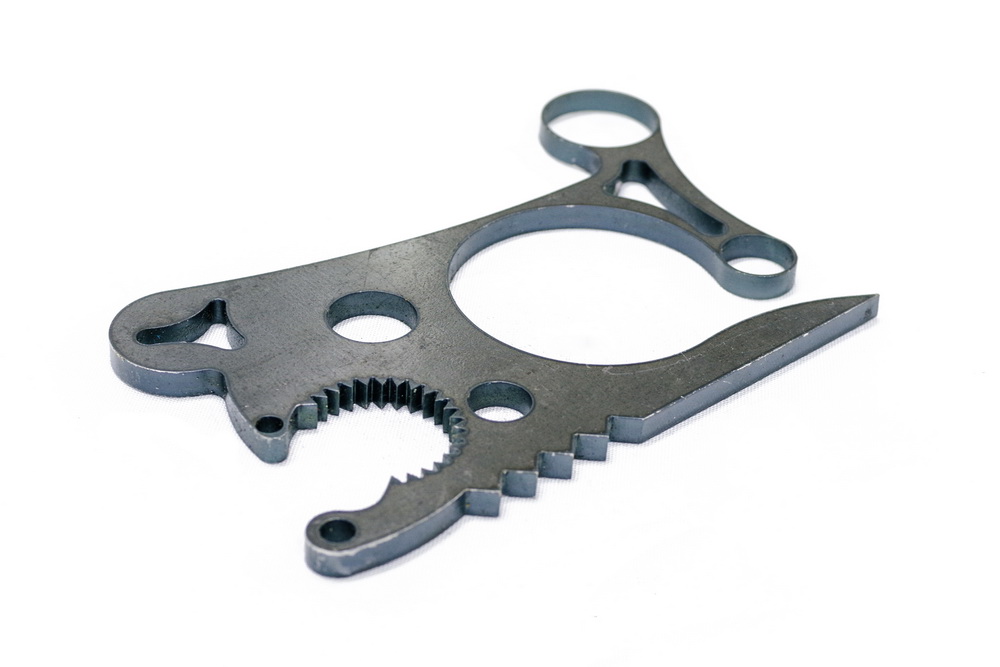

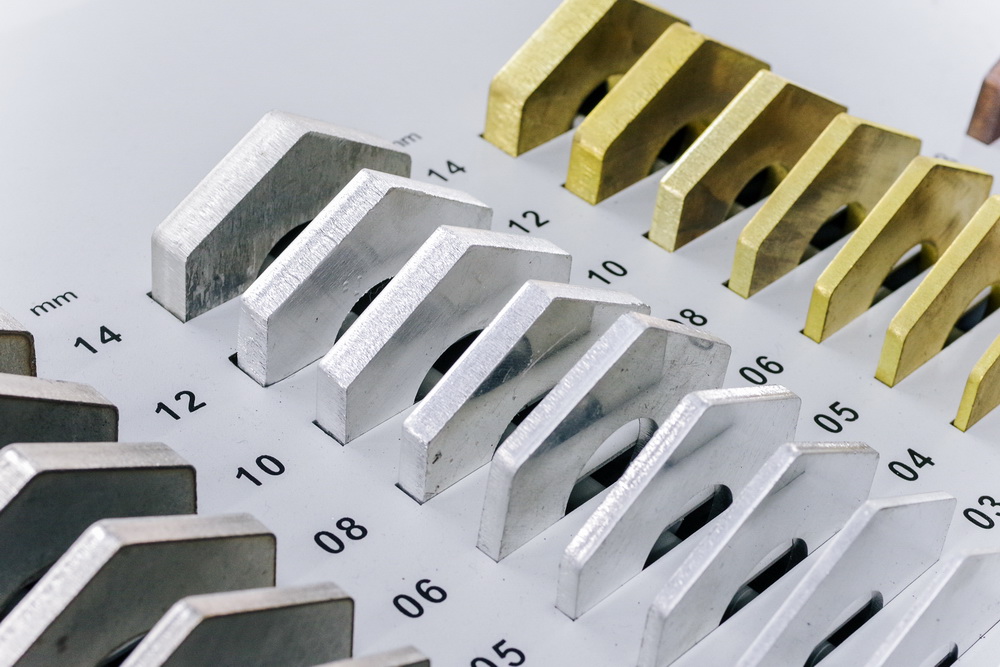

- Suitable for efficient cutting of metal materials such as carbon steel, stainless steel, aluminum alloy, and copper sheet.
- Machinery Manufacturing
- Suitable for processing metal structural parts in industries such as construction machinery, agricultural machinery, and textile machinery.
- Hardware Products Processing
- Suitable for processing hardware accessories, lamps, metal furniture, and other hardware needs.
- Advertising Signage Industry
- Suitable for cutting metal signs such as stainless steel lettering, hollow carvings, and advertising light boxes.
- Advertising Signage Industry
Performance Advantages:
- Faster cutting speeds on thin to medium thickness metals
- Superior edge quality requiring minimal post-processing
- Excellent small feature capability and fine detail reproduction
- Minimal heat affected zone for precision applications
Mintech MF series fiber laser cutting machine has the characteristics of high precision, high efficiency and strong flexibility, and is the ideal choice for manufacturers pursuing high-quality cutting effects and space optimization.
Technical Specifications
| Model | MF44 | MF510 |
|---|---|---|
| Working area | 51" × 51" ( 1300 × 1300 mm ) | 60" × 120" ( 1500 × 3000 mm ) |
| Countertop weight | ≤ 616lbs（ ≤280KG ） | ≤ 2200lbs（ ≤1000KG ） |

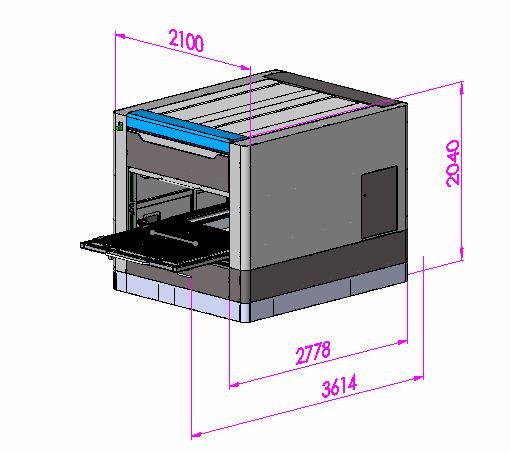

| Dimensions | 109" × 82" × 80" ( 2778 × 2100 × 2040 mm ) | 187" × 101" × 82" ( 4744 × 2554 × 2070 mm ) |
| Weight | 2200 lbs（ 1000kg ） | 10010 lbs（ 4550kg ） |
| Power and Utility Requirements |
|
|
| Control System | BOCHU FSCUT2000E | |
| Communication interface | USB, RJ45, u-disk | |
| Environmental Requirements |
|
|
| Laser Class | CLASS IV | |
| Cooling method | Water Cooling | |
| Air Requirements |
|
|
| Transmission mode | Helical rack & square guide rail | |
| Focusing method | Automatic | |
| Optical system | Fiber optic transmission | |
| Maximum acceleration | 1.2G （ 39ft / s², 12m / s² ） | |
| Maximum speed | 336ft / min（ 120m / min ） | |
| Positioning accuracy | ±0.05 mm / m） | |
| Repeatability | ±0.03 mm | |
| Laser life | Two-year warranty | |
| Available Configurations |
|
|
| Optional equipment |
|
|
